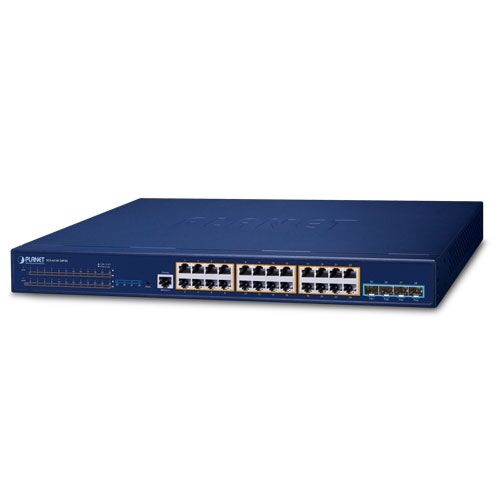

SGS-6310-24P4X L3 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Stackable Managed Switch

£599.00

Key Features

  • 24-port 10/100/1000BASE-T Gigabit Ethernet RJ45 with 24-port IEEE 802.3at PoE+ injector
  • 4* 10GBASE-SR/LR SFP+ slots, backward compatible with 1000BASE-SX/LX/BX SFP
  • RJ45 to DB9 console interface for switch basic management and setup
  • Virtualized multiple SGS-6310 series stacked into one logical facility
  • Connects with stack members via assigned 10G SFP+ interfaces
  • Single IP address stack management, supporting up to 8 hardware units stacked together
  • IPv4 routing protocol supports RIPv1/v2 and OSPFv2
  • IPv6 routing protocol supports RIPng and OSPFv3
  • Routing interface provides per VLAN routing mode
  • VRRPv1/v3 protocol for redundant routing deployment
  • Supports IPv4 IGMP v1/v2/v3, IGMP Snooping.
  • Supports IGMP Fast Leave, MVR, IGMP filter
  • Supports IPv6 MLD V1, MLD snooping
  • 16K MAC address table, automatic source address learning and aging
  • Supports VLAN

Description

PLANET SGS-6310 series is a brand-new Layer 3 Stackable Managed Gigabit Switch with 10Gbps uplink capability for various kinds of network applications and flexible deployment. The SGS-6310-24P4X features 24 10/100/1000BASE-T RJ45 802.3at PoE+ ports with PoE budget up to 370 watts and 4 1G/10GBASE-X SFP+ ports with 128Gbps switch fabric delivered in a 1U rugged case.



The SGS-6310 series provides high-density performance, Layer 3 IPv4/IPv6 static routing, RIP and OSPF dynamic routing capability, ERPS ring, abundant L2/L4 switching engine, and virtual switch stacking technology to fulfill the need of heavy transmission of all applications. It gives the enterprises, service providers and campuses flexible control over port density, uplinks and switch stack performance at an affordable price.



High Performance 10Gbps Ethernet Capacity

The four SFP+ ports built in the SGS-6310 series boasts a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as up to 80Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Each of the SFP+ ports supports Dual-Speed, 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

Centralized Hardware Stacking Management

Two of the 10G SFP+ ports can be configured to connect several SGS-6310 series for building a virtually logical facility. The stackable SGS-6310 series, suitable for enterprises, service providers and telecoms, provides high port density, large uplink bandwidth and high switch stack performance, thus giving great flexibility for different application requirements. The SGS-6310 series can connect as a ring for redundancy and ensures that data integrity is retained even if one switch in the stack fails. You can even hot-swap switches without disrupting the network, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.

Centralized Power Management for Gigabit Ethernet PoE Networking

To fulfill the needs of higher power required PoE network applications with Gigabit speed transmission, the SGS-6310-24P4X features high-performance Gigabit IEEE 802.3at PoE+ (up to 30 watts) on all ports. It perfectly meets the power requirements of PoE VoIP phone and all kinds of PoE IP cameras such as IR, PTZ, speed dome cameras or even box type IP cameras with built-in fan and heater.

The SGS-6310-24P4X’s PoE capabilities also help to reduce deployment costs for network devices as a result of freeing from the restrictions of power outlet locations. Power and data switching are integrated into one unit, delivered over a single cable and managed centrally. It thus eliminates the cost for additional AC wiring and reduces installation time.

PoE Schedule for Energy Savings

Besides being used for IP surveillance, the SGS-6310-24P4X is certainly applicable to build any PoE network including VoIP and wireless LAN. Under the trend of energy savings worldwide and contributing to the environmental protection on the Earth, the SGS-6310-24P4X can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save energy and budget.
