SG-3011 Thermocouple Input Signal Conditioner


Key Features

• Configurable for a Wide Range of Thermocouple Types
• Adjustable CJC Offset
• Open Thermocouple Detection
• Three-way Isolation: 1000 VDC

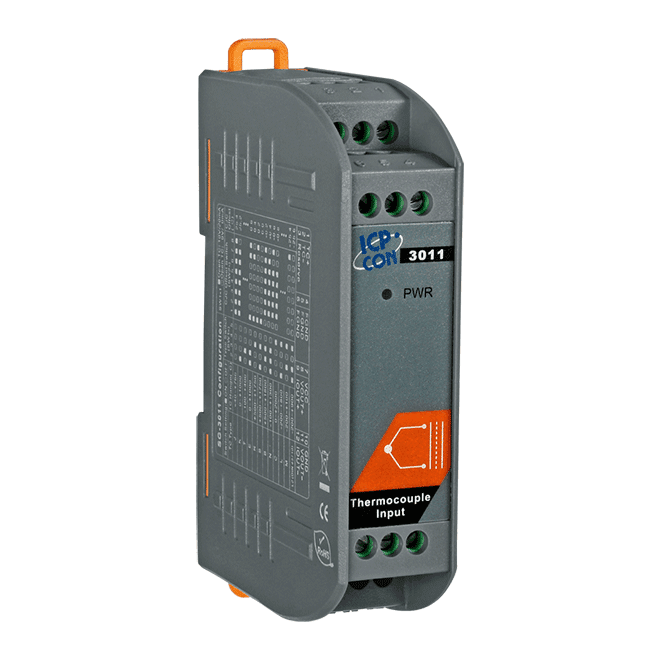

The ICP DAS SG-3011 module is a thermocouple input signal conditioner that uses a microprocessor-controlled high-resolution 24-bit integrated A/D converter to acquire the thermocouple signal and the cold junction compensation input. Temperature measurement is performed using the thermocouple linearization and cold junction compensation function.

The range of thermocouple types supported by the ICP DAS SG-3011 module include J, K, T, E, R, S, B, N, C, L, M, L2 (DIN43710). The response time for the ICP  DAS SG-3011 module is 100 ms. the response time for the SG-3011 is switch selectable and can be set to either 0.5 ms or 100 ms. The power supply that drives the input and output circuitry in the module is internally isolated, enabling the ICP DAS SG-3011 to offer true channel-to-channel isolation.

The ICP DAS SG-3011 module is easily mounted on a standard DIN rail, and the module can operate in harsh environments with a wide temperature range.
