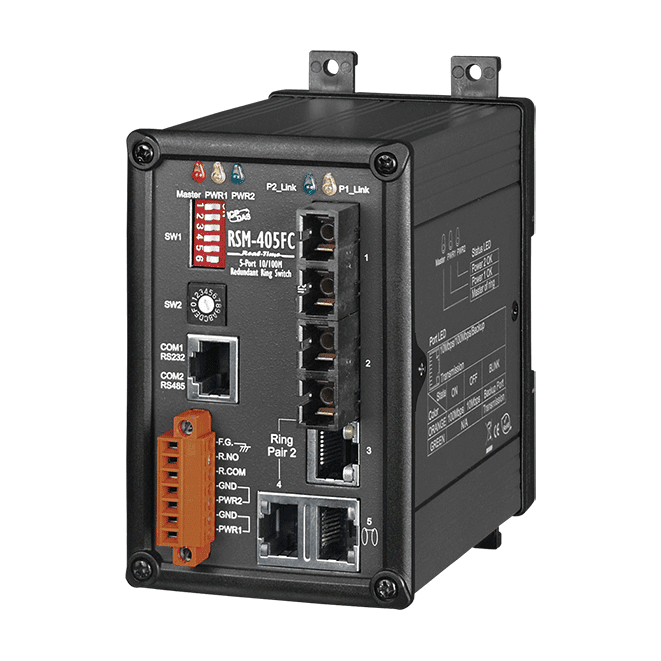

RSM-405FC 5-Port Real-time Redundant Ring Switch with 2-Fiber Port (Multi Mode, SC Connector) with metal case


Key Features

• Automatic MDI/MDI-X crossover for plug-and-play
• Each port supports both 10/100 Mbps speed auto negotiation
• Full duplex IEEE 802.3x and half duplex back-pressure flow control
• 3.2 Gbps high performance memory bandwidth
• Supports operating temperatures from 0°C ~ +70°C
• Redundant Power Inputs +10 VDC ~ +30 VDC
• Power failure alarm by relay output
• Modbus remote monitoring
• Supports Modbus OPC Server
• Store-and-forward architecture
• Built-in Cyber-Ring redundant technique
• Frame buffer memory: 512 Kbit
• 1024 MAC addresses
• Multi-mode, SC Connector Fiber supports
• DIN-Rail Mounting or Wall Mounting


The ICP DAS RSM-405FC is a 5-port industrial Ethernet (10/100Base-TX) real-time redundant ring switch with 2-Fibre ports. The RSM-405FC supports 10/100M auto-negotiation feature and auto MDI /MDIX function. It can automatically switch the transmission speed (10 Mbps or 100 Mbps) for corresponding connections.

The connectors of Ethernet port are shielded RJ-45 which offers a high reliability Ethernet environment for industrial control and automation. The Built-in ICP DAS Cyber-Ring technique enables multiple switches to be set-up into a redundant ring. This redundant switch typically detects and recovers from a copper link failure within approximately 20 ms. The ICP DAS RSM-405FC is easy to use with minimal software settings. The RSM-405 provides two power inputs that can be connected simultaneously to DC power sources. If one of the power inputs fails, the other live source acts as a backup to automatically support the RSM-405FC’s power needs. The RSM-405FC is also equipped with a relay output which delivers warning signal if there’s a dual power or network link failure.
