IGUP-805AT Industrial 1-Port 100/1000X SFP to 1-Port 10/100/1000T 802.3bt PoE++ Media Converter


Key Features

  • One 10/100/1000BASE-T with IEEE 802.3bt++ Gigabit RJ45 port
  • 1 SFP port, supporting 100/100BASE-X transceiver dual mode
  • Complies with IEEE 802.3bt PoE++ Type-4  PSE
  • Compatible with IEEE 802.3at/af PoE+ standard
  • LED Indicators
    • System: Power 1, Power 2, Alarm and PoE usage
    • Fiber port: LNK/ACT
    • 10/100/1000BASE-T port: LNK/ACT, PoE-in-use
  • DIP switch 1: LFPP (Link Fault Passthrough PoE Control) On/Off
  • DIP switch 2: PoE (Legacy / BT) mode selection
  • IP30 metal case
  • DIN-rail, wall-mount or side wall-mount design for redundant power design
  • 12 ~ 54V DC redundant power

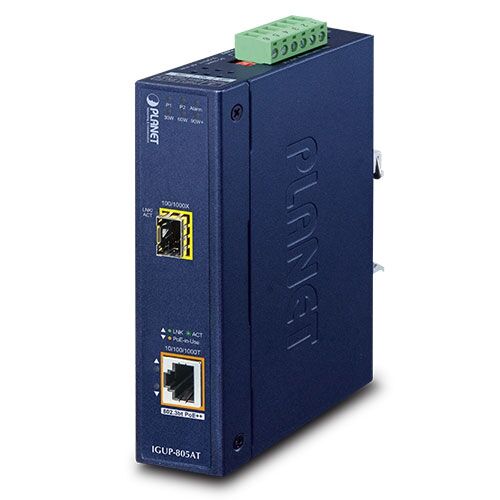

PLANET IGUP-805AT Industrial Gigabit Media Converter combines Ethernet media conversion (from 1000BASE-X to 10/100/1000BASE-T) with 802.3bt Power over Ethernet Plus Plus (PoE++) injector function to deliver up to 95 watts of power output and high data transmission speed to PDs (powered devices) installed in a remote area where sufficient and reliable power input is required. Its 1000BASE-X fiber optic uplink port provides long distance, high speed and stable data transmission to a remote core network. The special and convenient power system of the IGUP-805AT supports dual 12~54V DC power inputs for power redundancy and operational flexibility.

Being able to operate under the temperature ranging from -40 to 75 degrees C and with an IP30 rugged case, the IGUP-805AT can be placed in almost any difficult environment.

Fiber-optic Link Capability Extends the Range of Network Deployment

The maximum distance between a PoE PSE (power sourcing equipment) and PD via Ethernet cable is 100 meters. To extend the PoE deployment range, the IGUP-805AT is integrated with fiber interface for farther distance applications.  The IGUP-805AT’s fiber connector type is as follows:

  • One SFP interface supporting 100BASE-FX/1000BASE-X multi/single mode SFP module and transmission distance up to 120km (depending on SFP module)

With the long fiber distance support, the IGUP-805AT still sustains the transmission performance as high as 1000Mbps. It works in the high-performance Store and Forward mechanism, and also can prevent packet loss with IEEE 802.3x flow control. Furthermore, it can immediately alarm the administrators the issue from the link media and provide efficient solution to monitor the network power usage.

Plug and Play High Power Sourcing Solution

Complying with the IEEE 802.3bt Power over Ethernet Plus Plus technology, the IGUP-805AT provides up to 95 watts of PoE output power, tripling that of the earlier 802.3at plus. Through the Legacy function in the DIP switch design, it is also backward compatible with 802.3af/at PoE standards to allow users to flexibly deploy standard and high powered devices simultaneously with no need of software configuration. With data and Power over Ethernet from one unit, the IGUP-805AT can reduce cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.
