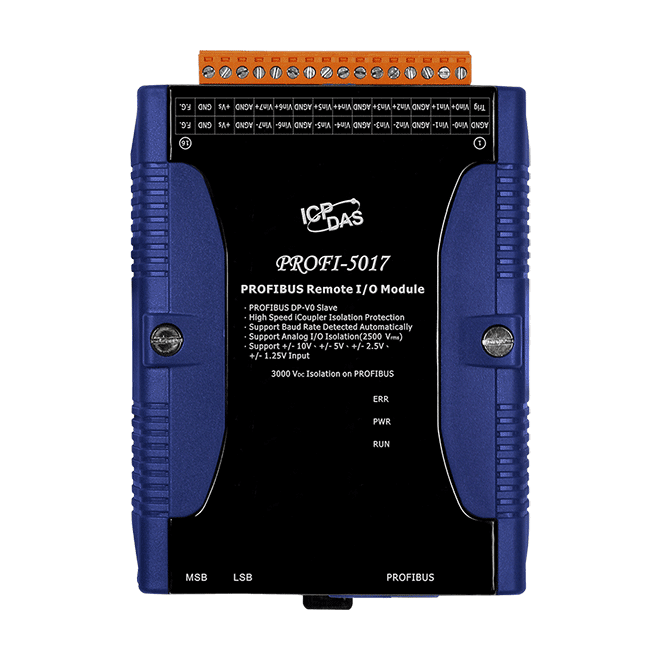

PROFI-5017 PROFIBUS Remote I/O Module with 8-channel Isolated Analog Voltage Input
£304.73
Key Features
• Protocol & Hierarchy : DP-V0 Slave
• Supports Transmission Rate (kbps) : 9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000
• Transmission Rate Setting : detected automatically
• Address Setting : Address 0~126 set by rotary switches or SSA Telegram
• Indicators : PWR LED, RUN LED, ERR LED
• I/O modules Configuration : Configured by GSD file
• Network Isolation Protection : High Speed iCoupler
• DC Isolation Protection : 3000 VDC on PROFIBUS side
• 4KV ESD Protection : Contact for each terminal
Description
The ICP DAS PROFI-5017 is specially designed for the slave device of PROFIBUS DP protocol. This module supports up to 8-channel isolated analog voltage input with 2500Vrms field to logic isolation. The PROFI-5017 offer users the flexibility to choose and configure this module via the GSD file in any PROFIBUS configuration.
