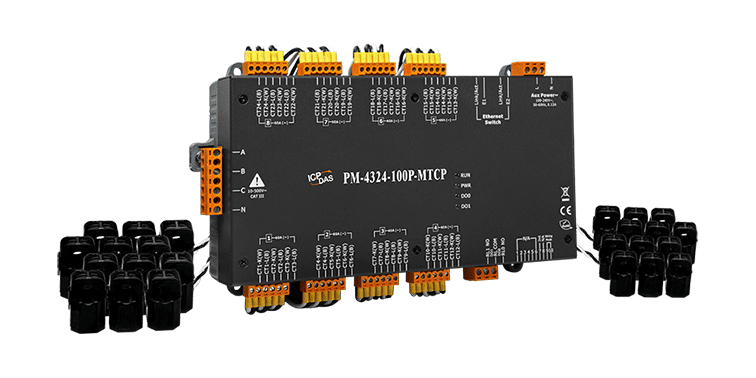

PM-4324-160P-MTCP Modbus TCP, Multi-Circuit Power Meter includes 100A CT

£2,100.00

Key Features

• Bi-directional Energy
• 8 Three Phase Circuits or 24 Single Phase Circuits
• True RMS Power Measurements
• Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
• Current Measurements Up to 100 A with Different CT Ratio
• Voltage Measurements Up to 500 V
• Easy install with split core CT
• W Accuracy Better than 0.5% (PF=1)
• Total Harmonic Distortion (THD)
• Support Modbus TCP Protocol
• Support 2 Power Relay Output (Form A)
CE FCC RoHS WEEE

Description

The ICP DAS PM-4324 series multi-circuit power meter monitors up to 8 three-phase circuits or 24 single-phase circuits, or any combination of single or three-phase circuits. The PM-4324-160P-MTCP can measure up to 24 currents via external Current Transformers (CTs).

This flexibility makes the ICP DAS PM-4324-160P-MTCP perfect for multi-tenant facilities such as residential projects, office buildings and shopping malls.

The ICP DAS PM-4324-160P-MTCP compact instrument is designed to easily fit into existing panel-boards or be flush mounted nearby, thus eliminating the need for expensive retrofit projects or for allocating extra space for the device.
