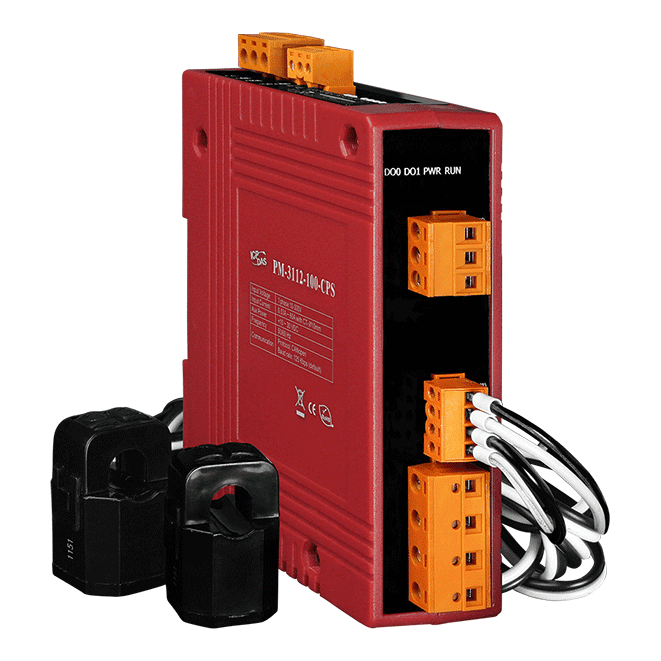

PM-3112-100-CPS CANopen, 2 loops single-phase Power Meter with two 60A CT (inside diameter 10 mm, wire lead 1.8 m)

£237.00

Key Features

• True RMS Power Measurements
• Energy Analysis for 1P2W, 1P4W
• Current Measurements Up to 60 A with Different CT Ratio
• Voltage Measurements Up to 300 V
• Clip-on CT for Easy Installation
• W Accuracy Better than 0.5% (PF=1)
• Supports CANopen Protocol
• Supports 2 Power Relay Output (Form A)
• IEC 61010-1 and EN 61010-1
CE FCC RoHS WEEE

Description

The ICP DAS PM-3000 series smart power meters that allow user the access to real-time electric usage for single-phase and 3-phase power measurements. With high accuracy (< 0.5%, PF=1 ), these smart power meters can be used to measuring low, medium or high voltages, enabling users to obtain reliable and accurate energy consumption readings from the monitored equipment in real-time. These compact size power meters are equipped with revolutionary wired clip-on CT (i.e. that support input current up to 200 A).

The ICP DAS PM-3112-100-CPS smart power meter support CANopen protocol for easy integration and operates over a wide input voltages range 10 ~ 300 VAC which allows worldwide compatibility. These smart power meters are also equipped with 2 channel relay outputs, essential for triggering alarms.

PM-3112(-MTCP)(-CPS)_PM-3114(-MTCP)(-CPS)_en
