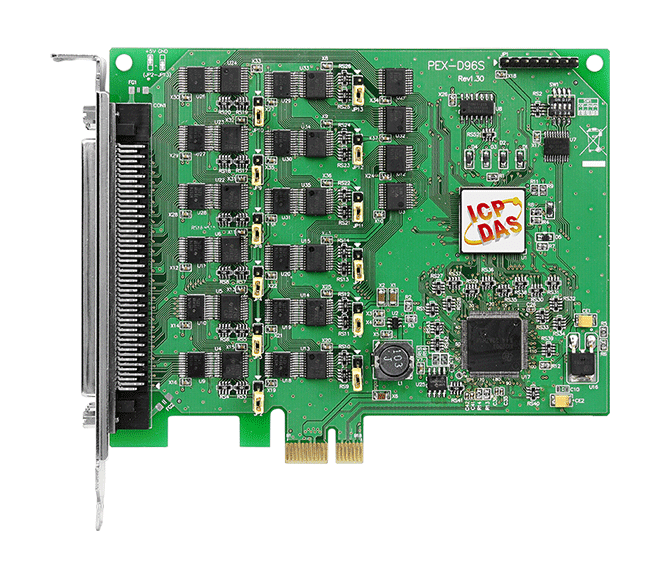

PEX-D96S PCI Express, 96-ch Digital I/O Board


Key Features

  • PCI Express x1 Interface
  • Supports Card ID (SMD Switch)
  • DI/O Response Time approximately 2 μs (500 kHz Max.)
  • DO Provides Higher Driving Capability
  • 96 Buffered CMOS Digital Input/Output Lines
  • Twelve/Eighteen 8-bit Bi-directional I/O Ports
  • Four Interrupt Sources
  • Pull-high/Pull-low Jumpers for DI Channels


The ICP DAS PEX-D96S supports PCI Express bus. These cards provide 96 TTL Digital I/O lines that consist of twelve 8-bit bi-directional ports. Each group of three 8-bit ports is arranged on the connector as Port A (PA), Port B (PB) and Port C (PC), respectively, and all ports are configured as inputs ports on power-up or after a reset.

The PEX-D96S provides a single high-density connector that reduces the amount of installation space required for the card in the computer. The ICP DAS PEX-D96S cards include an onboard Card ID switch that enables the board to be recognized via software if two or more boards are installed in the same computer. The pull-high/low jumpers allow the DI status to be predefined instead of remaining floating if the DI channels are disconnected or interrupted.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.
