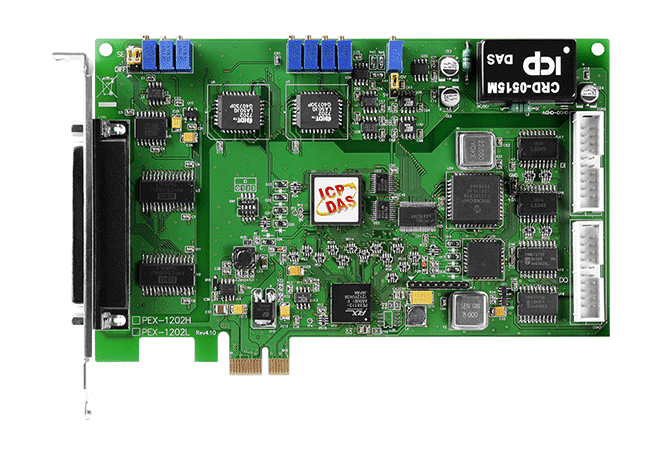

PEX-1202L PCI Express, 110 kS/s, 32-ch, 12-bit Multi-function Board (1 K word FIFO)


Key Features

  • PCI Express x1 Interface
  • 16-channel 5 V/TTL Digital Input
  • 16-channel 5 V/TTL Digital Output
  • Pull-high/Pull-low Jumpers for DI Channels
  • 12-bit, 32 Single-ended/16 Differential Analog Input channels
  • Three External Triggers: Pre-trigger, Middle-trigger, Post-trigger
  • 110 kS/s AD Sampling Rate
  • Supports Card ID (SMD Switch)


The ICP DAS PEX-1202L is a family of high performance data acquisition board. They feature a continuous A/D acquisition function of up to 110 kHz for low gain under DOS and offer two 12-bit D/A output channels, 16 DI channels and 16 DO channels.

The PEX-1202L provides 32-channel single-ended or 16-channel differential AIs. The PEX-1202L features ” MagicScan” function and Continuous Capture function. The PEX-1202L supports PCI Express bus. These cards add new designs of Card ID switch with which users can recognize the board by the ID via software when using two or more ICP DAS PEX-1202L cards in one computer. The pull-high/low jumpers of the card allow user to predefine the DI status instead of floating when the DI channels are unconnected or broken.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

Lead time: 5-7 working days from receipt of order.
