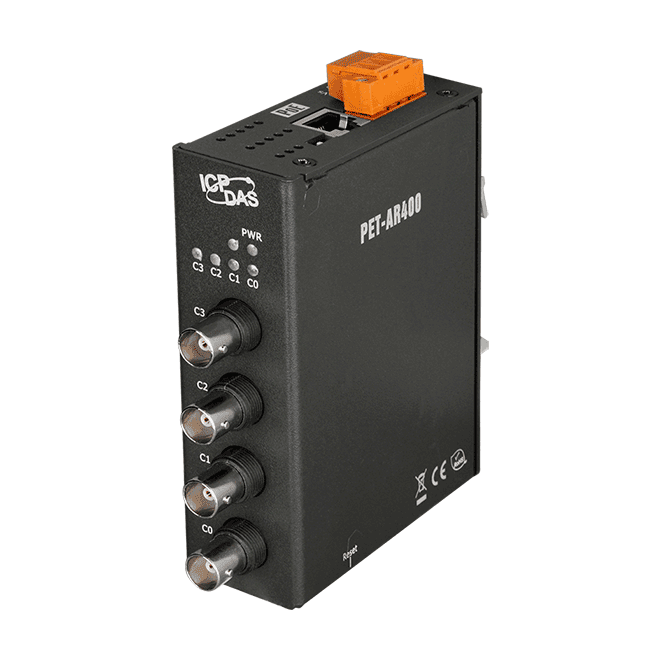

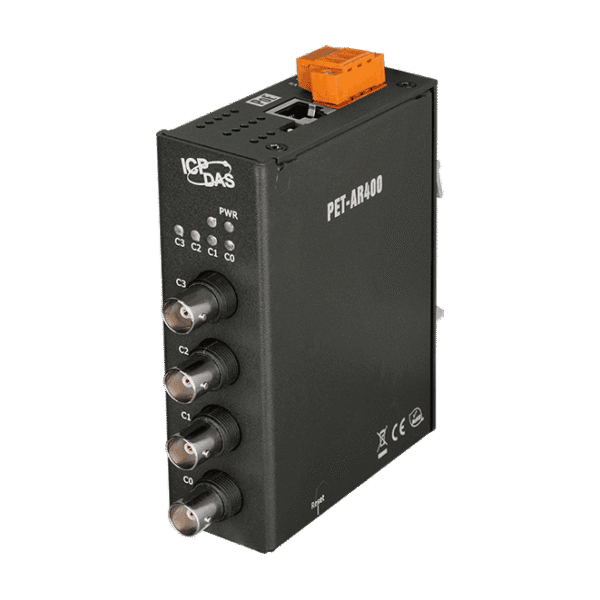

PET-AR400 PoE Ethernet High Speed Data Acquisition Module with 4-ch Accelerometer (IEPE) Inputs

£849.00

Add to quote

Key Features

  • 4 differential IEPE input，Excitation Current 4 mA
  • 24-bit ADC
  • Supports Real Sample and Hold
  • Sample Rate up to 128 kS/s(One Channel)
  • Continuous and N Data Sample Data Transmission Mode
  • A/D Trigger Mode
    1. Software Trigger
    2. Analog Threshold Trigger
  • Software Support
    1. Supported Operating Systems
      Windows 7/8/10 and Linux
    2. Software Compatibility
      1. Microsoft VC, C#, VB.NET SDK API and Demo
      2. NI LabVIEW Toolkit and Demo for Windows
      3. C/C++ library and Demo for Linux
  • Built-In 10/100BASE-T Auto-negotiating, Auto MDI/MDI-X Ethernet Port

CE UKCA RoHS WEEE

Description

The ICP DAS PET-AR400 is a high speed data acquisition device with a built-in Ethernet communication port for data transfer over a network, and includes 4 high-speed 24-bit differential IEPE input channels (128 kHz sample-and-hold @ one channel).

The PET-AR400 also provides 4 kV ESD protection as well as 2500 VDC intra-module isolation. In addition, the 24-bit ADC includes built-in filtering to adjust the appropriate sampling rate and filter out modulator and signal noise. The ICP DAS PET-AR400 is not only suitable for a wide range of mobile/portable measurement applications, but also for precision signal measurement.

The software trigger mode can command the trigger to perform continuous or N data A/D acquisition when needed, on the other hand, when the trigger mode is set to Analog Threshold Trigger mode, the A/D will start collecting N data when the analog input value is above or below a certain voltage.

PET-AR400_Application

pet-ar400_en
