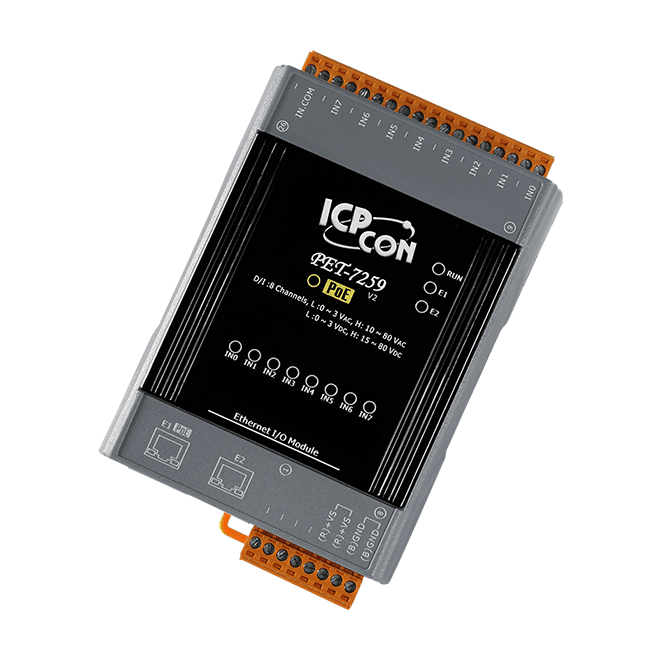

PET-7259 Power over Ethernet I/O Module with 2-port Ethernet Switch and 8-ch AC/DC DI


Key Features

  • Built-in Web Server
  • Web HMI and Power over Ethernet function
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • 2-port Ethernet Switch for Daisy-Chain Topology
  • Dual Watchdog
  • I/O Pair Connection
  • Built-in I/O
    • AC/DC Digital Input: 8 Channels


The ICP DAS PET-7259 provides full networking capabilities, together with web-based user interface for easy configuration. The PET-7259 module can be remotely controlled using the Modbus TCP/UDP protocol via the Ethernet network. This makes the modules to be well integrated with HMI, SCADA, PLC, and other industrial control software systems.

The PET-7259 is a Power over Ethernet 8-channel isolated digital input module that can detect AC and DC signals (up to 80 VAC or 80 VDC). The signal is interpreted as logic high when an AC voltage which is under 80 VAC exists. Each module provides up to 2500 VDC of optical isolation and transient protection.
