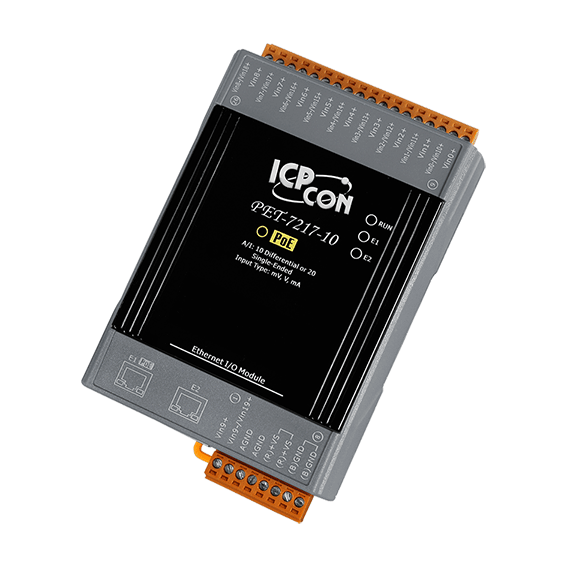

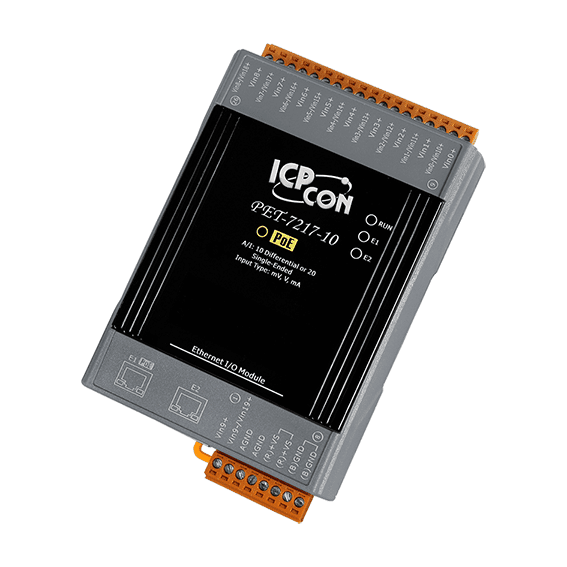

PET-7217-10 PoE Ethernet I/O Module with 2-port Ethernet Switch and 10/20-ch AI

£325.00

Add to quote

Key Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP & Modbus UDP Protocols
  • Communication Security
  • 2-port Ethernet Switch for Daisy-Chain Topology with PoE function
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C
  • Built-in I/O
    • AI: 10/20 Channels

CE UKCA RoHS WEEE

Description

The ICP DAS PET-7217-10 is a module with 10-channel differential or 20-channel single-ended analog inputs. It provides programmable input range on all analog channels (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA). Each analog channel is allowed to configure an individual range and has 240 Vrms high overvoltage protection.

Each analog input can be programmed to accept voltage or current as input depending upon the position of corresponding jumper. The sampling rate of PET-7217-10 has two modes; fast mode and normal mode for your consideration. The ICP DAS PET-7217-10 also has qualification for 4 kV ESD protection as well as 3000 VDC intra-module isolation.

ET-7×17-10_PET-7×17-10_en
