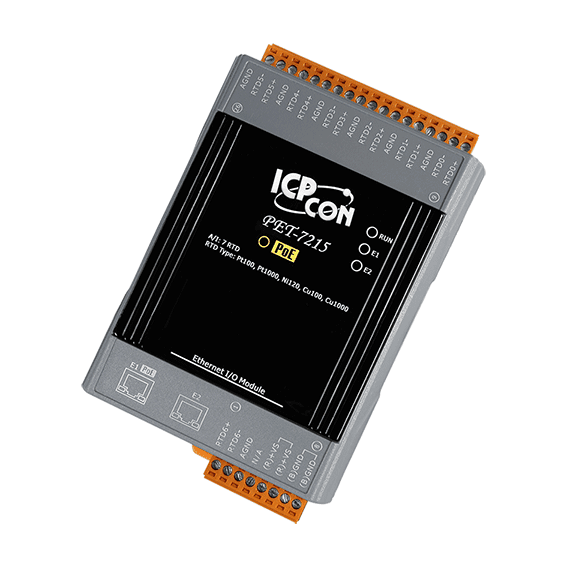

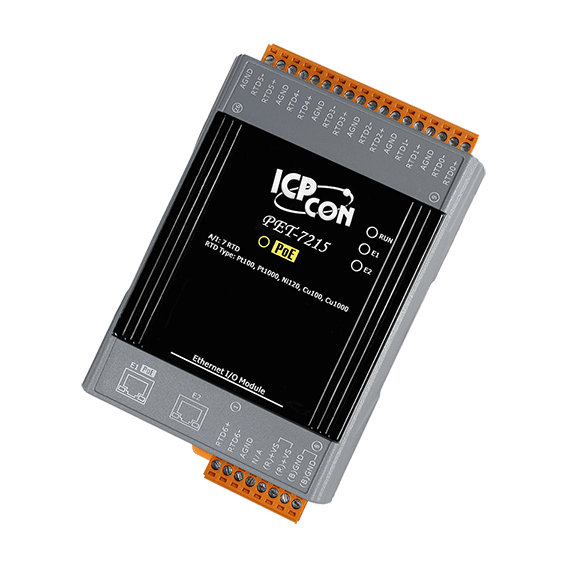

PET-7215 PoE Ethernet I/O Module with 2-port Ethernet Switch & 7-ch RTD Input


Key Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP & Modbus UDP Protocols
  • Communication Security
  • 2-port Ethernet Switch for Daisy-Chain Topology
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C
  • Built-in I/O
    • RTD Input: 7 Channels


The ICP DAS PET-7215 is specifically designed for long-distance RTD measurement with Power-Over-Ethernet (PoE). It features automatic compensation for three-wire RTD regardless of the length of wires and provides open wire detection for RTD measurement.

The PET-7215 remote I/O module is equipped with 7-channel RTD input, each channel can be connected with different kinds of RTD sensors including Pt100, Pt1000, Ni120, Cu100 and Cu1000. The ICP DAS PET-7215 is fully RoHS-compliant and has qualification for 4 kV ESD protection as well as 2500 VDC intra-module isolation.
