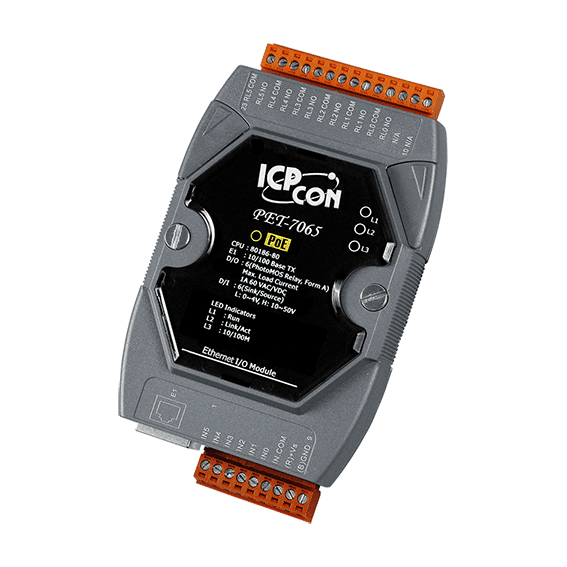

PET-7065 6-ch PhotoMOS Relay Output & 6-ch Isolation Digital Input with PoE


Key Features

  • Built-in Web Server
  • Web HMI
  • Power-over-Ethernet function
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • 2-port Ethernet Switch for Daisy-Chain Topology
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C
  • I/O Pair Connection
  • Built-in I/O
    • DI/Counter: 6 Channels
    • PhotoMOS Relay: 6 Channels


The ICP DAS PET-7065 provides 6 wet contact digital input channels and 6 form A PhotoMOS relays. The PET-7065 features optical isolation for 3000 VDC of transient over-voltage protection and doesn’t have channel-to-channel isolation. Each input channel can be used as a 32-bit counter with the ICP DAS PET-7065 I/O module.

The PET-7065 is equipped with Power-over-Ethernet function and the power-on value and safe value of PhotoMOS relay are programmable. It can safely be used in industrial applications where hazardous voltages are present. The ICP DAS PET-7065 PoE IO modules are designed for industrial applications including Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis and Testing Equipment.
