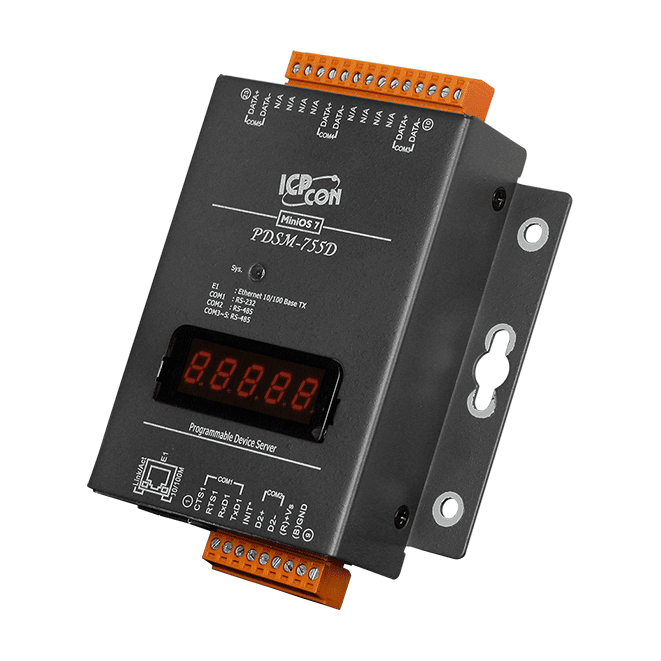

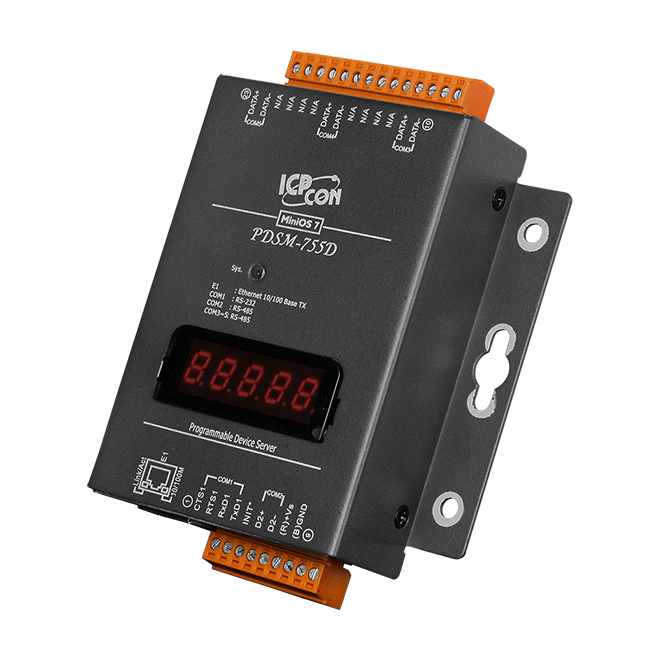

PDSM-755D Programmable (1x RS-232 and 4x RS-485) Serial-to-Ethernet Device Server with LED Display (Metal Case)

£359.00

Key Features

  • Incorporate Serial Devices in an Ethernet network
  • “Virtual COM” Extend COM Ports
  • VxComm Utility supports 32/64-bit Windows 7 SP1/10/2012/2016
  • Supports Modbus TCP to RTU/ASCII Gateway
  • Powerful Programmable Device Server
  • Watchdog Timer suitable for use in harsh environments
  • Serial Port +/-4 kV ESD Protection Circuit
  • Self-Tuner ASIC Controller on the RS-485 Port
  • Built-in High Performance MiniOS7 from ICP DAS
  • Supports Latched D/I and Counter Functions
  • Palm-Sized with multiple Serial Ports
CE UKCA FCC RoHS WEEE

Description

The ICP DAS PDS-700 series is a family of Programmable Device Servers, also known as “Serial-to-Ethernet gateway”, that are designed for linking RS-232/422/485 devices to an Ethernet network. The user-friendly VxComm Driver/Utility allows users to easily turn the built-in COM ports of the PDS-700 series into standard COM ports on a PC. By virtue of its protocol independence, a small-core OS and high flexibility, the PDS-700 series is able to meet the demands of every network-enabled application.

The PDS-700 series includes a powerful and reliable Xserver programming structure that allows you to design your robust Ethernet applications in one day. The built-in, high-performance MiniOS7 boots the PDS-700 up in just one second and gives you fastest responses. It also works as a Modbus TCP to RTU/ASCII gateway that supports most SCADA/HMI communications based on the Modbus/TCP protocol.

The PPDS-700-MTCP series features true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) using a standard category 5 Ethernet cable to receive power from a PoE switch like the NS-205PSE. The PDSM-700 is the PDS-700 with Metal Case (RoHS) and the PPDSM-700-MTCP is the PPDS-700-MTCP with Metal Case (RoHS). Metal Case version includes stronger protection than PDS-700 and PPDS-700-MTCP.

The PDS(M)-755(D) and PPDS(M)-755(D)-MTCP is equipped with 1 RS-232 port and 4 RS-485 ports. The removable on-board terminal block connector is designed for easy and robust wiring in industrial situations.
