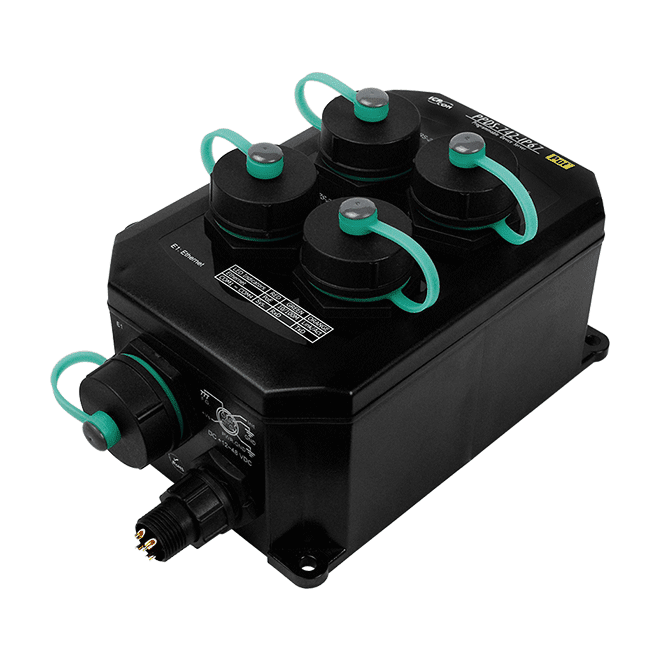

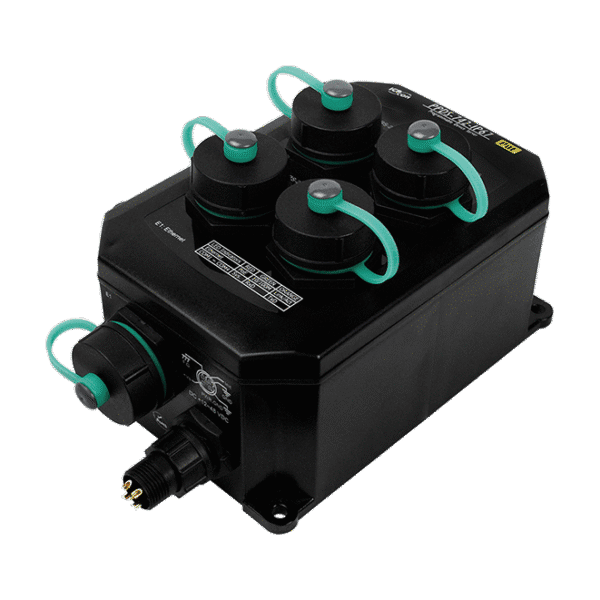

PPDS-742-IP67 Programmable (2x RS-232 and 2x RS-485) Serial-to-Ethernet Device Server with PoE & IP67 Casing


Key Features

  • Incorporate Serial Devices in an Ethernet network
  • Supports Modbus TCP to RTU/ASCII Gateway
  • VxComm Utility supports 32/64-bit Windows 7 SP1/10/2012/2016
  • Powerful Programmable Device Server
  • Watchdog Timer suitable for use in harsh environments
  • Serial Port +/-4 kV ESD Protection Circuit
  • Self-Tuner ASIC Controller on the RS-485 Port
  • Built-in High Performance MiniOS7 from ICP DAS
  • Rugged RJ-45 Connector for anti-vibration and shock
  • Plastic Casing with IP67 Waterproof


The ICP DAS PPDS-742-IP67 series is a family of Programmable Device Servers, also known as “Serial-to-Ethernet gateway”, that are designed for linking RS-232/485 devices to an Ethernet network. The user-friendly VxComm Utility allows users to easily turn the built-in COM ports of the PPDS-742-IP67 series into standard COM ports on a PC. By virtue of its protocol independence, a small-core OS and high flexibility, the PPDS-742-IP67 series is able to meet the demands of every network-enabled application.

The PPDS-742-IP67 series includes a powerful and reliable Xserver programming structure that allows you to design your robust Ethernet applications in one day. The built-in, high-performance MiniOS7 boots the PPDS-742-IP67 up in just one second and gives you fastest responses.

The PPDS-742-IP67 is a special design for the toughest applications. It can be directly mounted to any machine or convenient flat surface. The rugged packaging and IP67 connectors are rated to protect against water, oil, dust, vibration, and much more.

The PPDS-742-IP67 supports PoE (Power over Ethernet) function that allows power and data to be carried over a single Ethernet cable, so a device can operate solely from the power it receives through the data cable. This innovation allows greater flexibility in office design, higher efficiency in systems design, and faster turnaround time in set-up and implementation. When there is no PoE switch on site, the PPDS-742-IP67 accepts power input from a +12 VDC ~ +48 VDC adapter.
