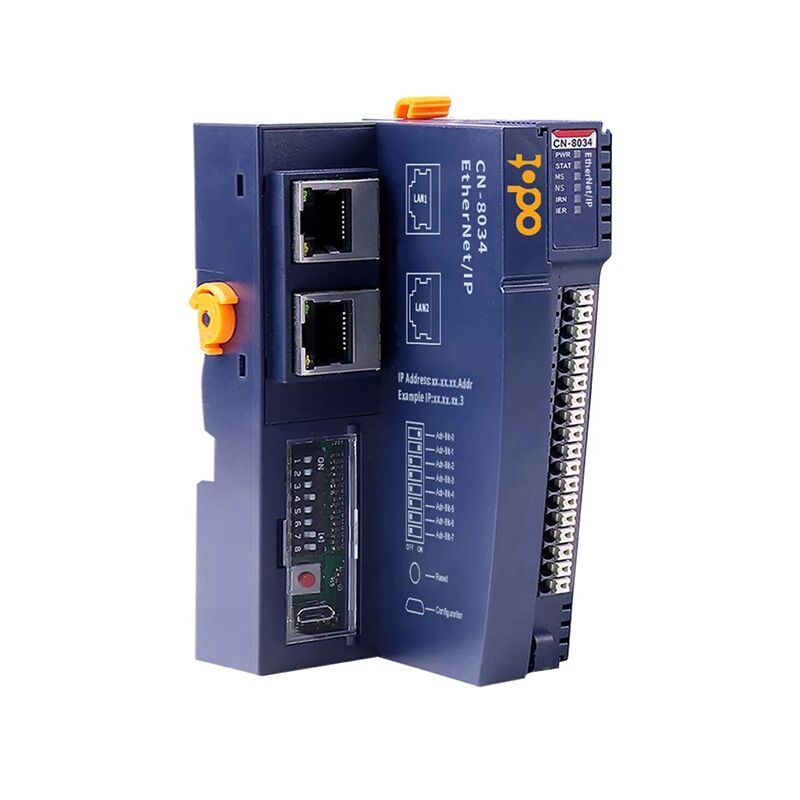

ODOT CN-8034 EtherNET/IP Network Adapter


Key Features

• Protocol: EtherNET/IP
• Process Data Area: Sum of input and output: 504 Byte
• Diagnostic Function: Supported
• Max.Bus Length: 100m
• Network Interface: RJ45x2
• Speed: 10/100Mbps, MDI/MIDX, Full-Duplex


The ODOT CN-8034 EtherNET/IP Network Adapter supports EtherNET/IP communication protocol and can monitor I/O modules communication status in real time.

This modular system can process input and output data at a rate of 504 bytes, and supports up to 32 extension IO modules.

The ODOT CN-8034 EtherCAT I/O network adapter offers the flexibility to expand the I/O count of any existing or new automation or control system.

There are a vast array of I/O modules that can monitor and control process signals such as volts, mA and temperature , or switches and digital signals; which makes the ODOT CN-8034 I/O system easy to integrate with SCADA, PLC, PAC and PC based software systems for a wide range of industrial automation, measurement and process control applications.
