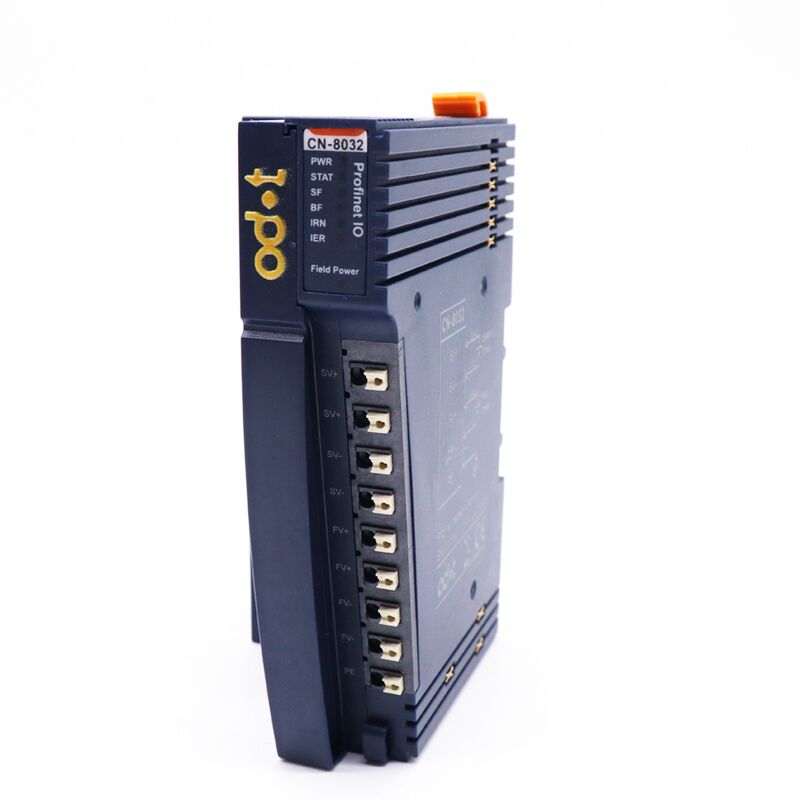

ODOT CN-8032-L Profinet Network Adapter without MRP & network redundancy


Key Features

• Protocol:  Profinet IO Device
• Process Data Area: Sum of input and output: 1440 Byte
• RT: Yes, 1ms Minimum
• MRPD: No
• Profinet Device Name: DIP switch setting or Profinet monitor modifying
• Max.Bus Length: 100m
• Network Interface: RJ45x2
• Speed: 10/100Mbps, MDI/MIDX, Full-Duplex


The ODOT CN-8032-L Profinet network adapter support Profinet IO device Communication. This adapter do not support MRP media redundancy and has no ring network redundancy topology. The ODOT CN-8032-L support RT real-time and synchronous communication mode, with its RT real-time communication minimum period of 1ms.

This modular system can process input and output data at a rate of 1440 bytes, and supports up to 32 extension IO modules.

The ODOT CN-8032-L Profinet I/O network adapter offers the flexibility to expand the I/O count of any existing or new automation or control system.

There are a vast array of I/O modules that can monitor and control process signals such as volts, mA and temperature , or switches and digital signals; which makes the ODOT CN-8032-L I/O system easy to integrate with SCADA, PLC, PAC and PC based software systems for a wide range of industrial automation, measurement and process control applications
