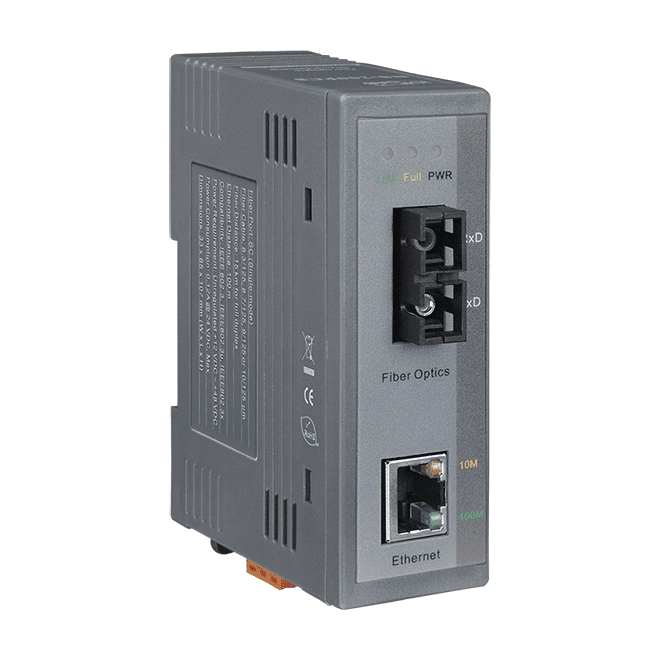

NS-200AFCS-T Industrial 10/100 Base-TX to 100 Base-FX Media Converter (Single mode, SC connector)
£189.00
Key Features
• Automatic MDI/MDI-X crossover for plug-and-play
• Supports both 10/100 Mbps speed auto negotiation
• Store-and-forward architecture
• Full duplex IEEE 802.3x and half duplex backpressure flow control
• 1.4 Gbps high performance memory bandwidth
• Frame buffer memory: 256 Kbit
• 1024 MAC addresses
• Supports +12 VDC ~ +48 VDC
• Reverse Polarity Protection
• Supports operating temperatures from -30 °C ~ +75 °C
• Single-mode, SC Connector Fiber supports
• Slim packaging fits on your DIN-Rail
• Supports both 10/100 Mbps speed auto negotiation
• Store-and-forward architecture
• Full duplex IEEE 802.3x and half duplex backpressure flow control
• 1.4 Gbps high performance memory bandwidth
• Frame buffer memory: 256 Kbit
• 1024 MAC addresses
• Supports +12 VDC ~ +48 VDC
• Reverse Polarity Protection
• Supports operating temperatures from -30 °C ~ +75 °C
• Single-mode, SC Connector Fiber supports
• Slim packaging fits on your DIN-Rail
Description
The ICP DAS NS-200AFCS-T is a Ethernet (10/100 Base-TX) to Media (100 Base-FX) converter. The Ethernet supports 10/100M auto negotiation feature and auto MDI/MDI-X function. NS-200AFCS-T can work normally from -30 ~ 75°C and accepts a wide voltage range from +12 ~ 48 VDC.
