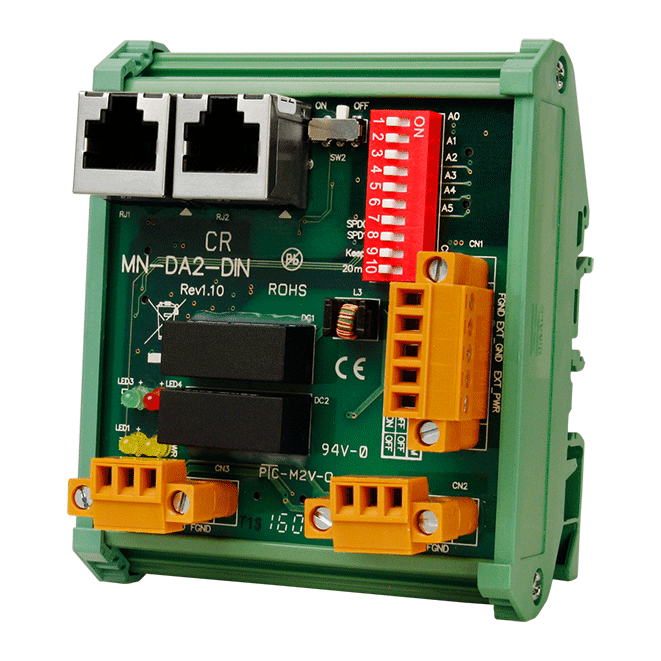

MN-DA2-DIN Distributed Motionnet 2-ch Analog Output Module


Key Features

  • Dual channel +/- 10 V analog output
  • RJ-45 communication port
  • 2 way isolation on power, communication
  • 16-bit high resolution, 0.3mV min
  • Software calibration of offset/gain
  • Rapid output rate, Slew rate = 20 V / us
  • High precision, DNL = +/-1 LSB, INL = +/-3 LSB


The ICP DAS MN-DA2-DIN is a Motionnet 2-channel analog output I/O module. The max device capacity can be loaded 64 I/O modules on each Motionnet communication port. Thus, each port can be expanded into 128 analog output points at once. The communication latency between two devices is 15.1μsec so that the max communication latency with 64 I/O modules on one communication port is 0.97 ms.

The I/O connection status update is automated and real-time by the hardware without occupying CPU time. The 16-bit high precision resolution analog output is provided +/- 10V range, 5V reference voltage with low shift, and hardware calibration in offset and gain for easy usage to customers.
