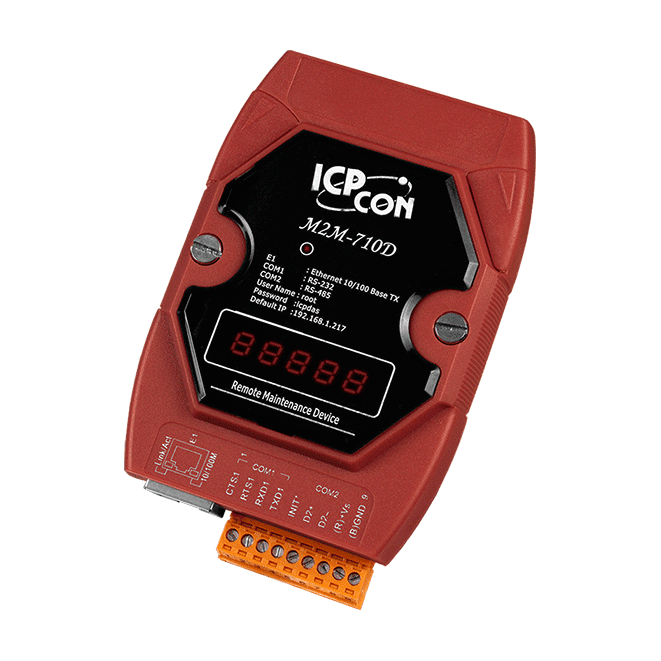

M2M-710D Remote Maintenance Ethernet Device Terminal Unit with RS-232 and RS-485 Ports


Key Features

  • Support VxServer Software
  • Provide pair connection (RS-232,RS-485) on network
  • Support Server and Client communication mode
  • Support VxComm function in server mode
  • Be applied with other M2M products (M2M-420-A, M2M-720-A…)
  • Support RS-232 or RS-485 serial communication ports
  • Web-based administration
  • Built-in MiniOS7 OS to keep off the computer virus
  • Ethernet Protocol: TCP, UDP, IP, ICMP, ARP, RARP
  • Provide dynamic DNS function
  • Supply static IP/DHCP (Ad Hoc mode don’t support DHCP)
  • Quick start
  • 5-Digit 7 Segment LED Display
  • EMI, RoHS compliance


The ICP DAS M2M-710D module is specially designed for the remote maintenance and upgrading the serial to network application solution. It is suitable for the harsh industrial field. The M2M-710D provides 2 major technologies on networking. The Pair connection provides TCP data tunneling between 2 serial devices.

Therefore, by means of TCP/IP server/client infrastructure, M2M-710D can provide the remote serial data transmission by Ethernet between local and remote sides. This solution can transfer the site condition of equipment accurately. The maintenance engineer can directly check and diagnose the device/PLC like on-site. This can reduce the huge maintenance cost to increase the competition of enterprises. Except for the functionality above, M2M-710D can also be accommodatingly in other equipment (M-4132, M2M-720-A, M2M-711D…).

The M2M-710D also Support VxComm and VxServer functions . The user-friendly VxComm Driver/Utility and VxServer allow users to easily turn the built-in COM ports of the M2M-710D into standard COM ports on a PC. By virtue of its protocol independence, a small-core OS and high flexibility, the M2M-710D is able to meet the demands of every network-enabled application. (V25 or latter).


1. Serial application revolution: Upgrade the original serial application to network application.

2. Remote Maintenance: Establish the remote maintenance system of the equipments sold in the world.

3. Virtual Com: Remote maintenance by Virtual Com technology. (It’s not supported in Wi-Fi mode)

4. VxServer mode: The user-friendly VxComm Driver/Utility and VxServer allow users to easily turn the built-in COM ports of the M2M-710 into standard COM ports on a PC.
