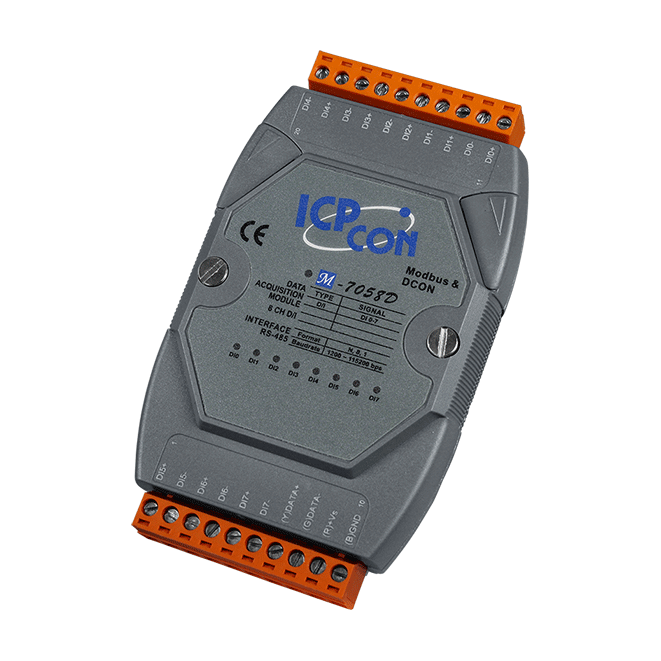

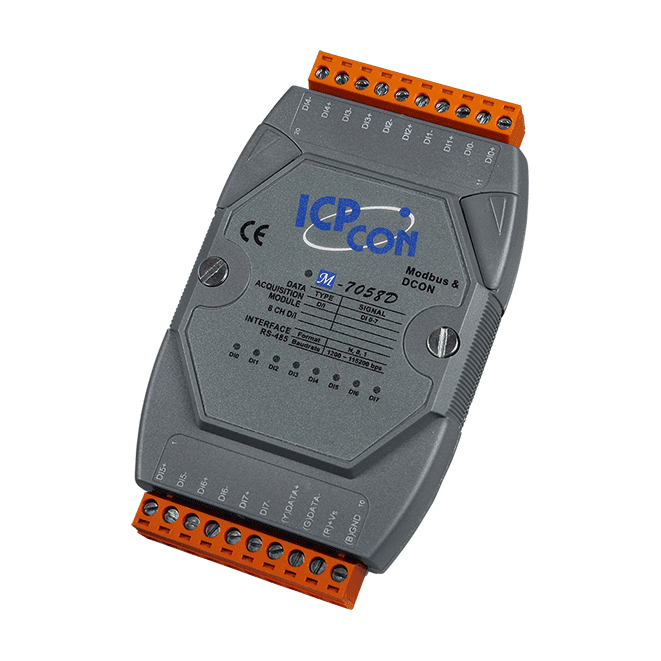

M-7058D 8-ch Isolated (Wet, 80~250 VAC/±80~±250 VDC) DI Module with LED Display


Key Features

  • Supports AC/DC Digital Input
  • 8 Differential Digital Inputs
  • Digital Input Channels Can be Used as 16-bit Counters
  • Channel-to-Channel Isolation
  • Built-in Dual Watchdog


The ICP DAS M-7058/M-7058D offers 8 differential channels for AC/DC digital input, each of which features channel-to-channel photocoupler isolation. All DI channels are also able to be used as 16-bit counters.

The M-7058D has 8 LED indicators for channel status monitoring. ESD protection of ±4 kV and 3750 VDC intra-module isolation are standard. The M-7058(D) supports Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7058(D).


  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote Diagnosis
  • Testing Equipment
