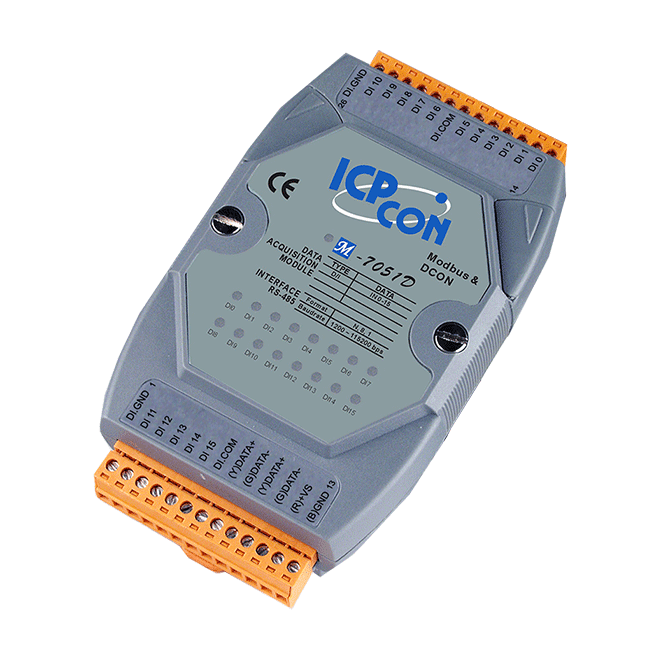

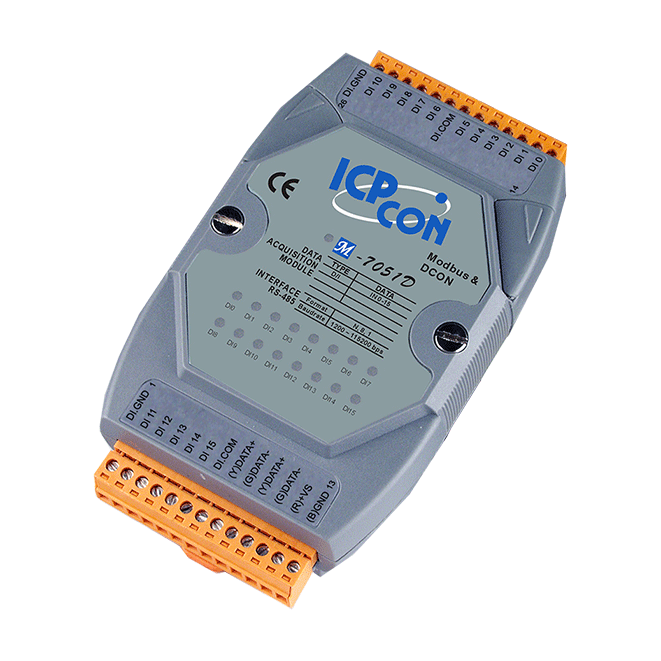

M-7051D 16-ch Isolated (Dry, Wet) DI Module with LED Display, using DCON and Modbus Protocols


Key Features

• 16-Channel Digital Input
• Dry Contact and Wet Contact Selectable via Wire Connections
• photocoupler Isolation
• Long Distance Measurement
• All Channels can be used as 16-bit Counters
• Built-in Dual Watchdog
• Wide Operating Temperature Range: -25 ~ +75°C


The ICP DAS M-7051/M-7051D offers 16 channels for digital input, catering for both dry and wet contact, with an effective distance for dry contact of up to 500 meters. All channels not only feature photocoupler isolation but can also be used as 16-bit counters.

The M-7051D has 16 LED indicators that can be used to monitor the status of the digital input channels. 4 kV ESD protection and 3750 VDC intra-module isolation are standard. M-7051(D) has the same hardware specifications as I-7051(D) but provides additional support for the Modbus RTU protocol as well as the DCON protocol.
