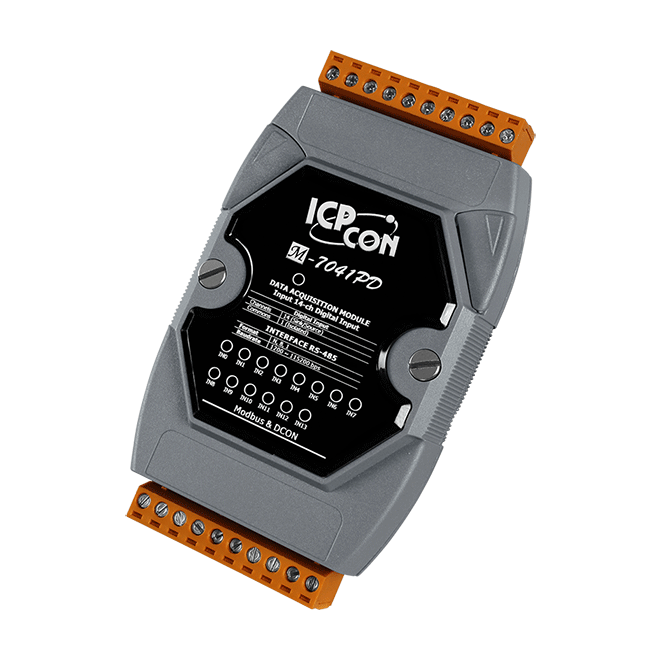

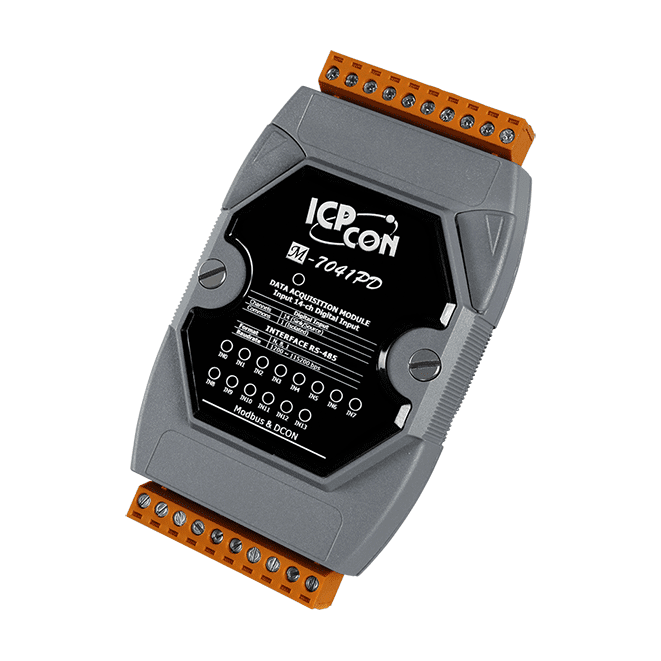

M-7041PD-G 14-ch Isolated (Wet, 19~30 VDC) DI Module with LED Display


Key Features

  • Sink- or Source-type Digital Input
  • Photocoupler Isolation
  • All Channels Can be Used as 16-bit Counters
  • Built-in Dual Watchdog


The ICP DAS M-7041(D)/M-7041P(D) provides 14 channels for digital input, each of which features photocoupler isolation. Either sink- or source-type inputs can be selected via wire connections, and all channels can be used as 16-bit counters. The M-7041D/M-7041PD includes 14 LED indicators for channel status monitoring.

The M-7041(D)/M-7041P(D) supports Modbus RTU and DCON protocols, which can be configured via software. 4 kV ESD protection and 3750 VDC intra-module isolation are standard, and all hardware specifications are the same as the I-7041(D)/I-7041P(D). ICP DAS recommends selecting the “P” version of the digital input module for industrial use.


• All Types of ON/OFF Control
• Building Automation
• Industrial Automation
• Industrial Machinery
• Food and Beverage Systems
• Semiconductor Fabrication
• Control Systems
