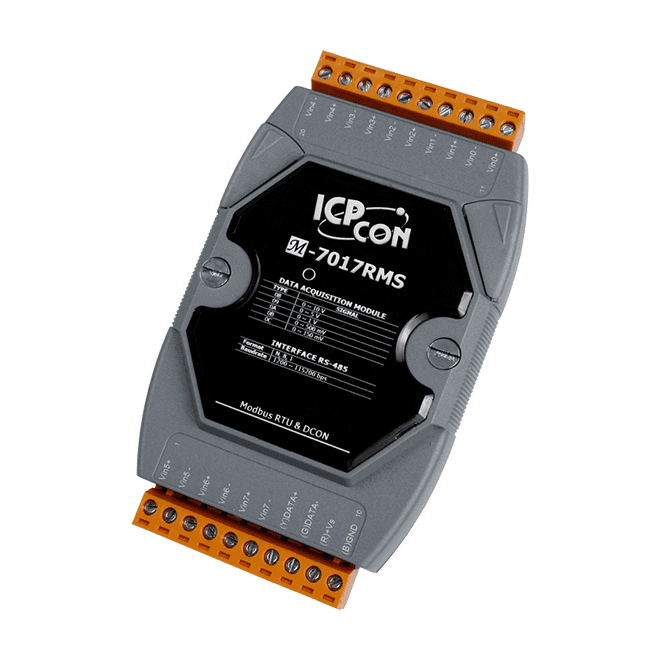

M-7017RMS-G 8-ch True RMS Input Module, support DCON & Modbus Protocols


Key Features

  • 8 True RMS Inputs
  • ±0.15% Factory Calibrated Accuracy
  • The RMS Input Range Can be from +150m Vrms to +10 Vrms
  • Designed for Standard Operating Frequencies of 45 Hz to 10 KHz
  • Individual Channel Configurable


The ICP DAS M-7017RMS is an 8-channel differential AC input module that is used to convert the AC input signals to their True RMS DC values. The RMS input range can be from +150 mVrms to +10 Vrms, and each channel can be configured individually.

The M-7017RMS is a complete, high-accuracy, RMS-to-DC converter that computes the True RMS DC value of any complex waveform. It also features 4 kV ESD protection, 2500 VDC intra-module isolation and ±35 VDC overvoltage protection.


• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
