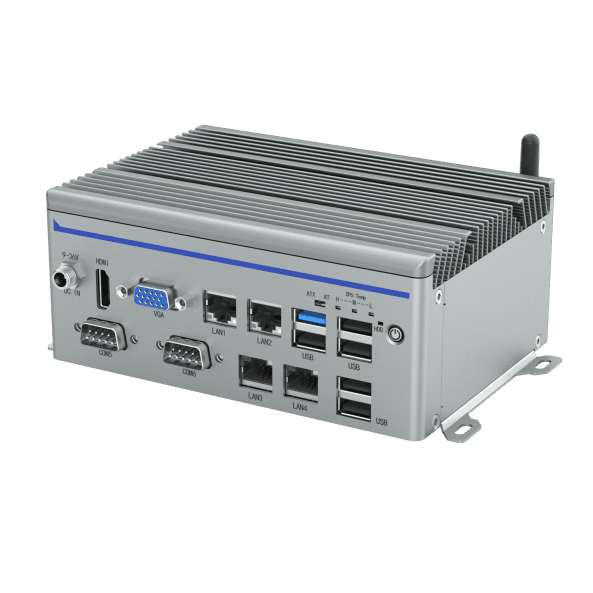

KMDA-2602-S001-4G Fanless Embedded Box Computer with Intel Celeron J1900 CPU, DDR3L 4GB, 4*LAN, 1*USB3.0, 6*USB2.0, 6*COM, 8-bit DIO,1*HDMI, 1*VGA, Audio out, 1*I-port, 1*2.5″ drive bay, 1*mSATA & DC 9~36V

Key Features

  • Compact Aluminum Chassis, Fanless Design
  • Intel Baytrail Celeron J1900 2.0-2.42G CPU
  • 1*DDR3L 1333MHz SODIMM ,Up to 8GB
  • 4*Intel I211-AT PCIe Gig. LAN
  • 1*HDMI and 1*VGA, Audio Line out
  • 1*USB3.0, 6*USB2.0,6*COM, 8 bit DIO
  • 1*Mini PCIe(PCIe+USB),1*Mini PCIe(SATA+USB)
  • 1*2.5″ SATA2 Bay and 1*mSATA
  • DC 9~36V Wide Power Input



The KMDA-2602 series are compact fanless embedded computers that is powered by Intel Celeron J1900 2.0-2.42GHz 4 cores 4 threads processor, DDR3L 1333MHZ SODIMM memory up to 8GB. 4 Gig. LAN, 1*USB3.0, 6*USB2.0, HDMI and VGA dual display, 8bit DIO, 1*Mini PCIe, 1*mSATA and 1*2.5″ SATA bay.

This fanless embedded computers is equipped with DC 9-36V wide power input and operating temperature ranges which makes it ideal for industrial applications such as intelligent transportation, video security and machine vision.

Our range of industrial fanless embedded computers are ruggedly designed to meet mission-critical applications with harsh environmental conditions including extreme temperatures, high shock and vibration, and protection from water splash and dust.

Our wide range of industrial fanless embedded computers come with a two year standard warranty period.
