IR-712A Universal IR Learning Module (2x IR outputs, 224x IR cmds)

IR-712A Universal IR Learning Module (2x IR outputs, 224x IR cmds)

£139.00

Add to quote

Features

  • 2 IR output channels
  • 1 IR learning input
  • IR command capacity: 224
  • Supports 6 learning IR carrier frequencies: 33、36、37、38、40 and 56 kHz
  • Supports RS-232 and RS-485 serial interface
  • Supports Modbus RTU protocol to emit IR commands
  • Provides ASCII String Command (DCON protocol) to emit IR commands
  • Provides API library for PC program development

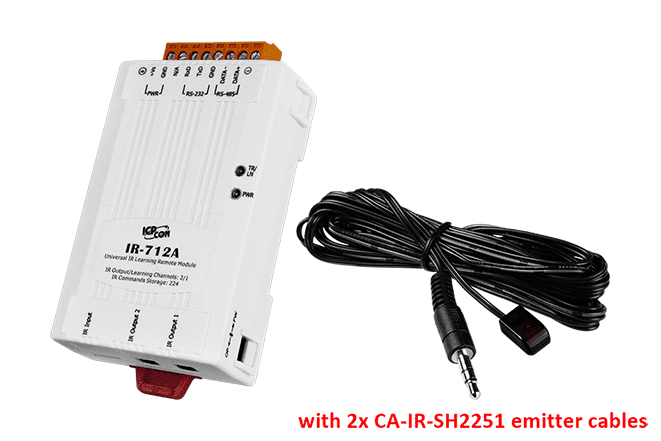

  • Includes 2x CA-IR-SH2251 IR emitter cables
    (Remote control range: CA-IR-SH2251 is 80% of CA-IR-SH2251-5)
RoHS WEEE

Description

The ICP DAS IR-712A is a universal IR learning remote module which can learn IR remote commands of diverse electronic devices. The learning commands can be stored in the module or saved to a file.

The IR-712A supplies 2 IR output channels for individual or simultaneous control on multiple devices. The accompanied RS-232 and RS-485 interfaces with Modbus RTU and DCON protocols provide flexible expansion and control on the modules. Besides, IR-712A software utility provides users with easy configuration, learning, test and storage of IR commands. As a replacement of IR remote controls and a module that can be easily integrated with Modbus master devices (e.g. PAC, PLC, PC), IR-712A is well-suited for smart home and building automation.

Applications

  • Home Entertainment Devices
  • Video Conferencing System
  • Surveillance System
  • e-Classroom service
  • Lighting Scenario Control
  • Home and Building Automation
  • ICP DAS PC with the IR Remote Application

IR-712A_datasheet_en
