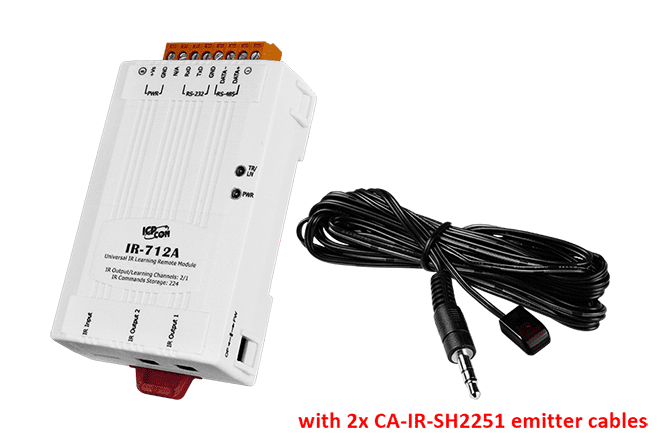

IR-712A-5 Universal IR Learning Module (2x IR outputs, 224x IR cmds) (RS-232, RS-485) (RoHS) includes 2x CA-IR-SH2251-5 emitter cables



  • 2 IR output channels.
  • 1 IR learning input.
  • IR command capacity: 224.
  • Supports 6 learning IR carrier frequencies: 33、36、37、38、40 and 56 kHz.
  • Supports RS-232 and RS-485 serial interface.
  • Supports Modbus RTU protocol to emit IR commands.
  • Provides ASCII String Command (DCON protocol) to emit IR commands.
  • Provides API library for PC program development.
  • Includes 2x CA-IR-SH2251-5 IR emitter cables.
    (Remote control range: CA-IR-SH2251-5 is 125% of CA-IR-SH2251)


The ICP DAS IR-712A-5 is a universal IR learning remote module which can learn IR remote commands of diverse electronic devices. The learning commands can be stored in the module or saved to a file.

The IR-712A-5 supplies 2 IR output channels for individual or simultaneous control on multiple devices. The accompanied RS-232 and RS-485 interfaces with Modbus RTU and DCON protocols provide flexible expansion and control on the modules. Besides, IR-712A-5 software utility provides users with easy configuration, learning, test and storage of IR commands. As a replacement of IR remote controls and a module that can be easily integrated with Modbus master devices (e.g. PAC, PLC, PC), IR-712A-5 is well-suited for smart home and building automation.


  • Home Entertainment Devices
  • Video Conferencing System
  • Surveillance System
  • e-Classroom service
  • Lighting Scenario Control
  • Home and Building Automation
  • ICP DAS PC with the IR Remote Application
