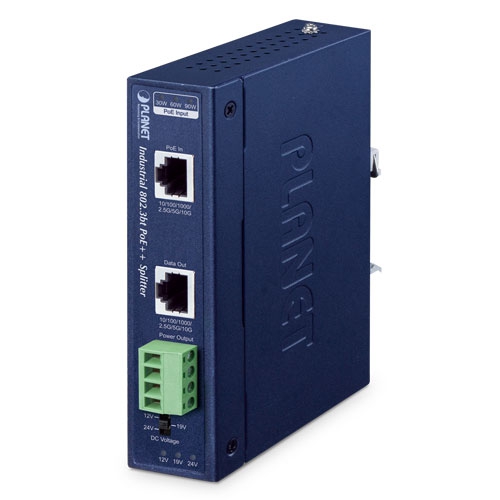

IPOE-176S Industrial Single-Port 10Gbps 802.3bt PoE++ Splitter


Key Features

  • Two 10/100/1000BASE-T Gigabit RJ45 ports
    • 1-port Data + Power input
    • 1-port Data output
  • One 2-pin terminal block for power output. (12V DC, 5A)
  • IP67-rated and IK10-rated aluminum case
  • LED indicators for power LED and DC Ready
  • Wall-mount design
  • Supports 6KV DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature
  • Plug and Play installation


PLANET IPOE-176S is an Industrial-grade 802.3bt Power over Ethernet Splitter which delivers the Ethernet digital data and PoE power from an 802.3bt PoE++ type-4 PSE (power source equipment) over an UTP cable. It comes with a selectable 12V/19V/24V DC DIP switch, enabling to deliver a maximum of 70-watt power output to a non-PoE device.

It is also equipped with two 10M/100M/1G/2.5G/5G/10GBASE-T RJ45 copper interfaces to handle extremely large amounts of data transmission. To fulfill the growing industrial applications, the IPOE-176S is designed to work under the operating temperature range from -40 to 75 degrees C. The IPOE-176S is an ideal solution to transfer power to a traditional network device with high power demand directly without the need to install additional power outlets and electrical cabling in the industrial environment.

Quick and Easy 802.3bt PoE++ Network Deployment

If the existing network deployment consists of non-PoE powered devices that require high power to function, the IPOE-176S, powered by an ultra PoE power sourcing equipment, is able to feed the PDs with 802.3bt PoE++  as the splitter can split the data and power into two streams. The PDs gets their power through the splitter’s DC jack and the RJ45 interface accepts only Ethernet data.

The POE-176S frees the network device deployment from restrictions of power outlet locations, thus eliminating the costs for additional AC wiring and reducing the installation time.
