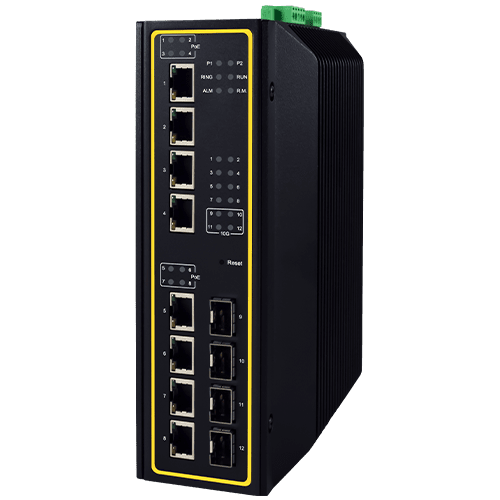

EHG7612-4PoE-410GSFP 12-Port Managed Gigabit Layer-3 Switch with 4 RJ45, 4 PoE, & 4 x 10 Gigabit SFP uplink ports


Key Features

  • Up to 8 10/100/1000 RJ45 ports or 100/1000 BASE-X SFP slots, plus 4 dedicated 1/10G Uplink SFP slots
  • Up to 8x 802.3af/802.3at PoE/PoE+ ports, with max 30W PoE power per port & up to 240W power budget
  • Powerful Layer-3 Switching, support IPv4 Static, RIPv1/v2 & OSPFv2
  • Redundancy through ITU-T G.8032 ERPS Ring, RSTP, STP, MRP (Client)
  • Operating temperature ranges from -40~75˚C
  • UL 62368-1:2014, CE/FCC, NEMA TS-2 certified for traffic control
  • IEEE 1588v2 Precision Time Protocol Hardware-Based End-to-End TC
  • Rugged high-strength housing
  • DIN-Rail or wall mounting ability


The ATOP EHG7612 Series offers several different  making it a very flexible product based on your specific needs for Layer-3 Switching. No matter if the version, this device offers 4 x 1/10 Gigabit Ethernet SFP uplinks making it a cost-effective, reliable industrial solution where high-throughput and high-reliability is fundamental

The EHG7612 supports up to 12 Gigabit ports in different configurations, either Copper, PoE or Fiber, any 8-port multiple configuration. Specifically designed for bringing power through Ethernet cable virtually anywhere, a maximum output Power over Ethernet of 240W over a maximum of 8 PoE/PoE+ ports is allowed (802.3af/at). NEMA TS-2 Certification makes the EHG7612 family the perfect choice for Smart City and Traffic Control applications.

The ATOP HG7612 is EN61000-6-2, EN61000-6-4, IEC/EN/UL62368-1:2014 and FCC certified certified and is designed to withstand the harshest environments and the most demanding EMC environment. Its fanless design and EMC Level 3 protection guarantee reliable operations within -40 and +70°C, guaranteeing no packet is lost with all ports running full power and makes it suitable to be used for almost every application.

With its high performance, it provides network redundant self-recovery mechanism is less than 20ms on full load that enables the user to build a reliable network through almost any redundant ring topology. The ATOP supports ITU-T G.8032 ERPS Ring, IEEE802.1D-2004 RSTP, STP, MSTP, MRP (Client), iA-Ring, iA-Chain and many compatible rings protocols for network redundancy. With a Multi-functional web dashboard, its offers intelligent features such as QoS, VLAN, IGMP, Port mirroring and security.
