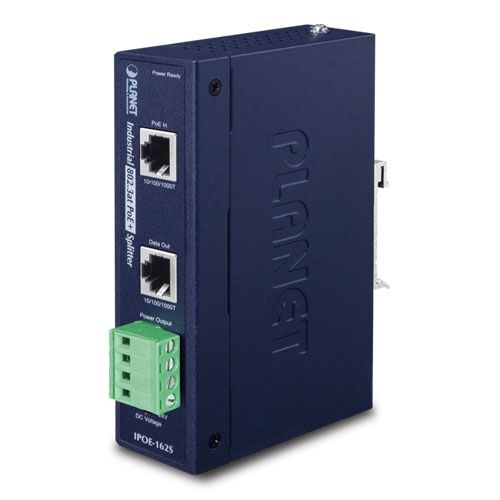

IPOE-162S Industrial IEEE 802.3at Gigabit High Power over Ethernet Splitter
£99.00
Key Features
• 2-port RJ-45 interfaces
– 1-port PoE Power+ Data input
– 1-port Data output
– 2 DC out (4-pin Terminal Block)
• Complies with IEEE 802.3at High Power over Ethernet, PD
• Splits the 48~56V DC power over RJ-45 Ethernet cable into DC 12V / 24V output
• IP30 metal case protection
• DIN rail and wall mount design
• Supports EFT 6000V DC protection for power line
• Supports 6000V DC Ethernet ESD protection
Description
The Best Industrial Grade Data Link and Power Sourcing for Non-PoE Solution
Planet IPOE-162S is an Industrial High Power PoE Splitter that can split the 48~56V DC over the existing Ethernet cable into the selectable 12V or 24V DC power output. It supports passive 10/100/1000Mbps Ethernet connection ability and complies with IEEE 802.3at High Power over Ethernet standard that supports up to 25-watt output power to powered device. To fulfill the growing industrial applications, the IPOE-162S is designed to work under the operating temperature range from -40 to 75 degrees C (-40 to 167 degrees F).
The IPOE-162S is an ideal solution to transferring power to traditional network device with high power demand directly without the need to install additional power outlets and electrical cabling in the industrial environment.
Innovative, Selectable DC Power Output Voltage
Via the innovative 12 volt / 24 volt DIP switch on the front panel, the IPOE-162S can supply either 24V DC power to industrial equipment or 12V DC output to the common network devices, such as wireless access point or IP camera. It highly increases the flexibility of the product applications.
Dual Power Output Capability
By supporting up to 25-watt 802.3at Power over Ethernet cable, the IPOE-162S can satisfy not only single power-hungry equipment but also able to share the 25-watt output power to two non-PoE Ethernet devices simultaneously through a 4-pin terminal block. For example, the two power output can be applied as shown below to completely solve the need of electric source:
– IP camera (Power 1) + Outdoor housing with fan and heater (Power 2)
– IP camera (Power 1) + Pan & Tilt motor (Power 2)
– Analog camera (Power 1) + IP video server (Power 2)
