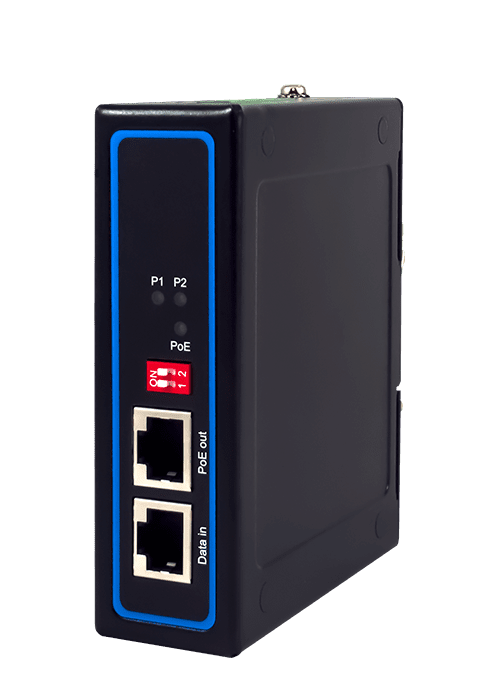

IJG7001 Industrial 24V PoE, PoE+ Injector


Key Features

  • Supports 802.3af (PoE), 802.3at (PoE+)
  • Up to 30W PoE power available
  • Redundant 12~57VDC Power input
  • Supports Mode A and Mode B, DIP-Switch Selectable
  • 2x 10/100/1000 BASE-T(X) ports (data in, data + PoE out)
  • IP30 aluminum with DIP-Rail / Wall mount (optional)
  • EN 62368-1 and UL/IEC 62368-1 certified
  • Strong EMC Protection, up to Level 4
  • Operating temperature ranges from -40~75˚C


The ATOP IJG7001 PoE Injector allows you to provide PoE Power to virtually any device. Besides legacy IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) standards. The ATOP IJG7001 supports for 802.3af/at both Mode A and Mode B, allowing you through a simple DIP-Switch setting, to determine which pins to use to transfer the power and be flexible in adapting this device in virtually any requirement without the hassle of different part numbers.

Equipped with a 12~57VDC wide-range redundant power input combined with a strong EMC protection, the ATOP IJG7001 can be flexibly installed on machine-side, reducing the overall cost of ownership resulting in not needing an external, expensive, power supply.
