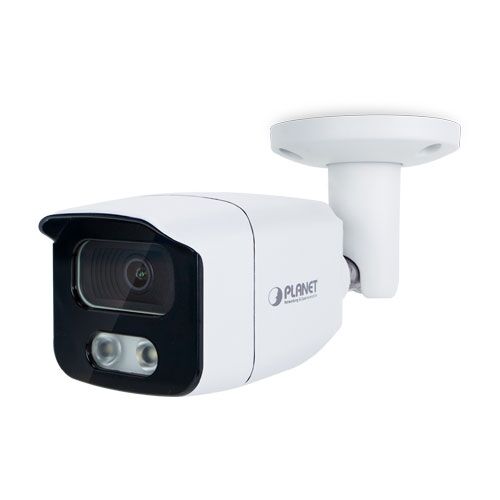

ICA-3480F H.265+ 4MP Full Color Bullet IP Camera


Key Features

  • Full Color Bullet
  • 1/3″ Progressive Scan CMOS Sensor
  • 3.6mm fixed with 4MP lens
  • 0.01 lux minimum illumination at F1.6
  • 4000K warm LED, effective up to 25 meters
  • Switchable warm light filter for Day & Night function
  • Simultaneous H.264(+)/H.265(+) dual-stream video encoding
  • Simultaneous multi-stream support
  • H.264(+)/H.265(+) baseline profile, main profile or high profile options
  • Max. resolution of 2688 x 1512@25fps
  • Supports Digital WDR (DWDR)
  • 3DNR to improve picture quality at low lux
  • IP67-rated metal housing with cable management bracket for rigorous environment
  • Waterproof and dustproof designs
  • -20 to 60 degrees C operating temperature


PLANET ICA-3480F 4MP Full Color PoE IP Camera delivers excellent picture quality in H.264(+)/H.265(+) 4 mega-pixel resolutions. Users can benefit from reduced 83% bandwidth and data storage through more efficient video compression. The new generation of full color technology is now equipped with CMOS sensor structure and software optimization. It can output high-quality color images even when the white light is off, makes it possible to catch vivid color details at night.


Equipped with a tough IP67-rated metal housing and being able to operate under the temperature range from -20 to 60 degrees C, the ICA-3480F can be easily installed in any public areas, such as buildings, gardens, parking areas, markets, railway stations and hospitals. It ensures the highest level of reliability for mission-critical applications in any difficult environment.

Unique Warm White LED

The product is equipped with a high-power unique warm white LED, which will turn on the warm white color system when the ambient light is insufficient at night. The LED light source achieves the full color effect of the night picture, and the effective distance is about 25M. With the rear low-power image processing chip, it can strengthen the 2D and 3D noise reduction processing system.


Exceptional Image Quality by DWDR technology

Incorporating the 1/3″ 4MP CMOS image sensor and 25-meter 4000K smart warm light LED, which are specially designed for surveillance applications, the ICA-3480F provides sharp images under all lighting conditions, used to better monitor any situation that occurs on the spot.



For specific surveillance applications, wide dynamic technology has become a standard feature of high-definition surveillance cameras. Together with powerful image processing attributes like Digital WDR (DWDR) and 3-dimensional Noise Reduction (3DNR) technology, the ICA-3480F is able to filter the intense backlight surrounding a subject and remove noises from video signal. The result is that an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions.



High Efficiency Video Compression

The ICA-3480F employs the H.264(+)/H.265(+) technology to enable the camera to provide higher and more efficient image compression rates. If the same image quality level of H.264 is compared with that of H.265, the latter is able to save around 83% of bandwidth, meaning H.264(+)/H.265(+) offers much higher quality video for less bandwidth. Thus, it can further enhance the overall performance of its IP surveillance system.
