iBPC-4081 Industrial fanless embedded Box PC with Intel Atom E3845 CPU & 1 I/O Bus

iBPC-4081 Industrial fanless embedded Box PC with Intel Atom E3845 CPU & 1 I/O Bus

Add to quote

Key Features

  • Powerful Hardware Design
    ‣ Intel E3845, 1.91 GHz, 64-bit, Quad core
    ‣ 1 x VGA display port
    ‣ 1 x HDMI display port
    ‣ Microphone-In and Earphone-Out
    ‣ Built-In dual watchdog timers/ Real-time clock/64-bit Hardware Serial Number
  • Various Memory & Storage Options
    ‣ 4 GB DDR3 on-board
    ‣ 1 x 2.5”SATA drive bay
    ‣ 1 x CF socket
    ‣ 16 KB EEPROM for data retention
    ‣ 128 KB MRAM for data retention
  • Multiple Communication Interfaces
    ‣ 2 x 10/100/1000BASE-T Ethernet Ports
    ‣ 4 x Serial Ports (1 x RS-232, 1 x RS-232/485, 2 x RS-232/422/485)
    ‣ 4 x USB 2.0 (host)
  • Highly Reliable Under Harsh Environment
    ‣ Operating Temperature: -25 ~ +70°C
  • Operating Systems
    ‣ Win7/Win8/Win10/WES7/Linux

CE UKCA FCC RoHS WEEE

Description

The ICP DAS iBPC series of fanless embedded box PCs is equipped with a wide operating temperature and a wide range voltage capability, which makes them suitable for a vast range of industrial application in harsh environment. The iBPC series comes with rich interfaces including RS-232 and RS-232/485 ports, two RS-232/422/485 ports, VGA, HMDI, Audio, dual Gigabit Ethernet LAN ports and four high-speed USB 2.0 ports.

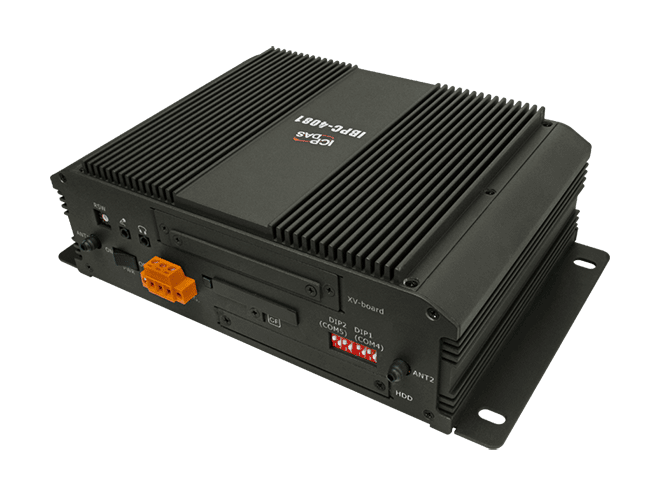

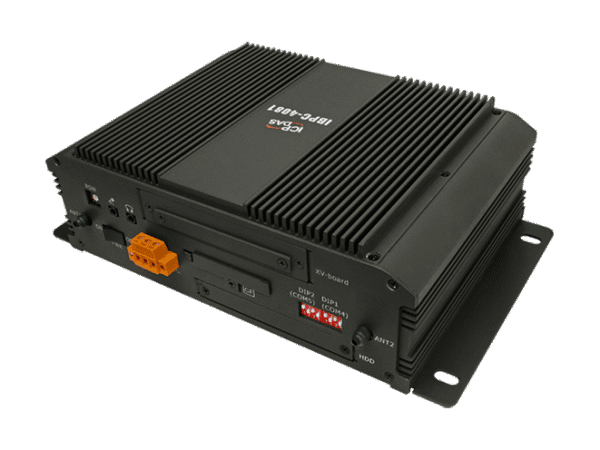

The ICP DAS iBPC-4081 is fanless embedded box PC with Intel® ATOM Quad Core 1.91Ghz Processor E3845 and 4GB on-board memory. The iBPC-4081 is equipped with two SMA type connector opening for antenna interface, the optional I/O expansion board (XV-board) provides high protection I/O. The 2.5″ SATA HDD drive bay enables this embedded computer to posess sufficient storage capacity for industrial applications.

ibpc-4081_data sheet_en
