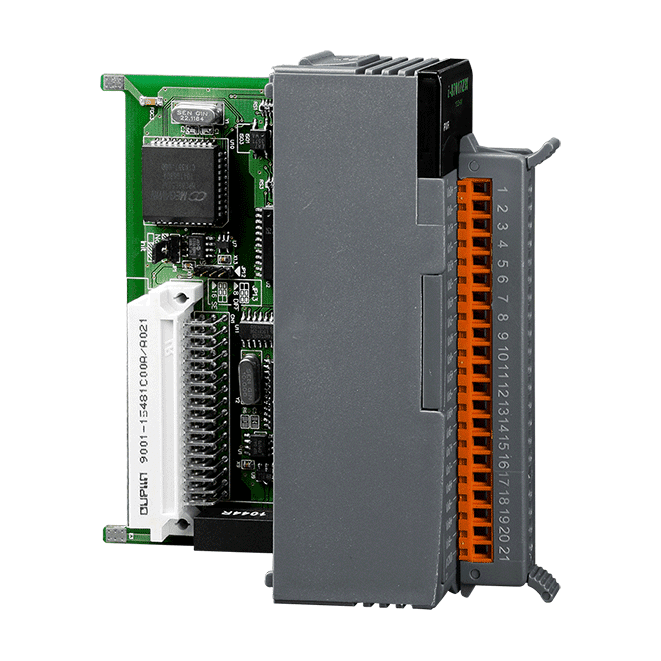

I-87061W-G 16-channel Relay output Module



The ICP DAS I-87061W is a 16-channel power relay output module with the output channels partitioned into four groups, where each group provides four channels that share a single COM point.
The I-87061W modules include 16 LED indicators that can be used to monitor the status of the relay output, and options for configuring both power-on and safe relay output values are also available, 4 kV ESD protection and 3750 VDC intra-module isolation are provided as standard to enhance the noise protection capabilities in harsh industrial environments.
