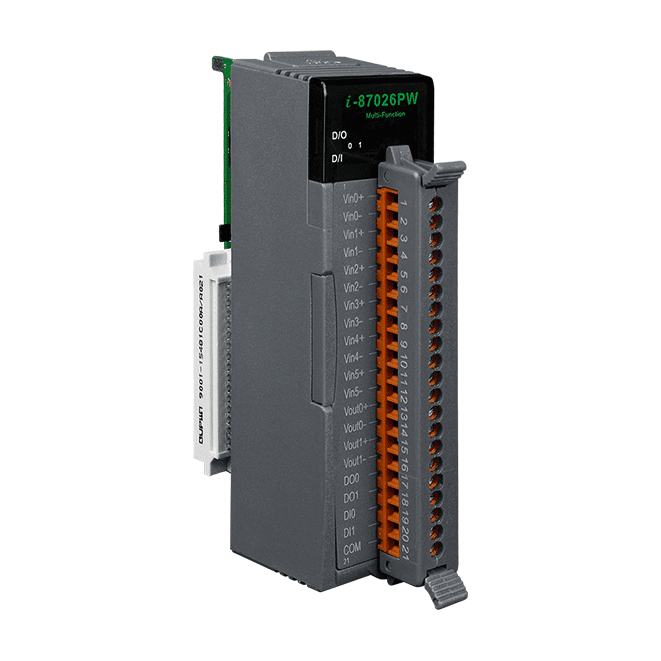

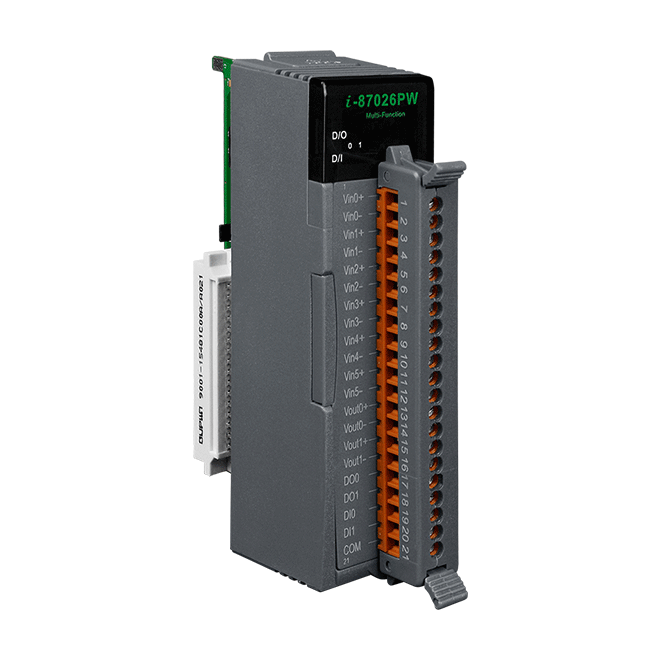

I-87026PW-G 6-ch AI, 2-ch AO, 2-ch DI & 2-ch DO Module

£262.00

Add to quote

Key Features

  • Multifunction (6AI, 2AO, 2DI and 2DO)
  • Supports Fast Mode and Normal Mode
  • Individual Channel Configuration
  • Open Wire Detection for Current Output
  • Overload and Short Circuit Protection for Digital Output
  • Configurable Power-on Value Settings
  • Configurable Safe Value Settings
  • 240 Vrms Overvoltage Protection for Voltage Input
  • 70 VDC Overvoltage Protection for Digital Input
  • Jumper Selectable Voltage or Current Input/Output
  • Dual Watchdog
  • ±4 kV Contact ESD Protection
  • Wide Operating Temperature Range: -25 °C ~ +75 °C
CE FCC RoHS WEEE

Description

The ICP DAS I-87026PW is a multi-function module that includes 6 analog input channels, 2 analog output channels, 2 digital input channels, 2 digital output channels. It provides a programmable input range on all analog input (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA or 4 ~ 20 mA), analog outputs are 12 bit at +/-5 V, +/-10 V, 0 ~ 20 mA or 4 ~ 20 mA and all digital outputs can be set as alarm output.

Each analog input can be configured for an individual range and provides a high over-voltage protection of 240 Vrms. Voltage and current inputs/outputs are jumper selectable.

I-87026PW_en
