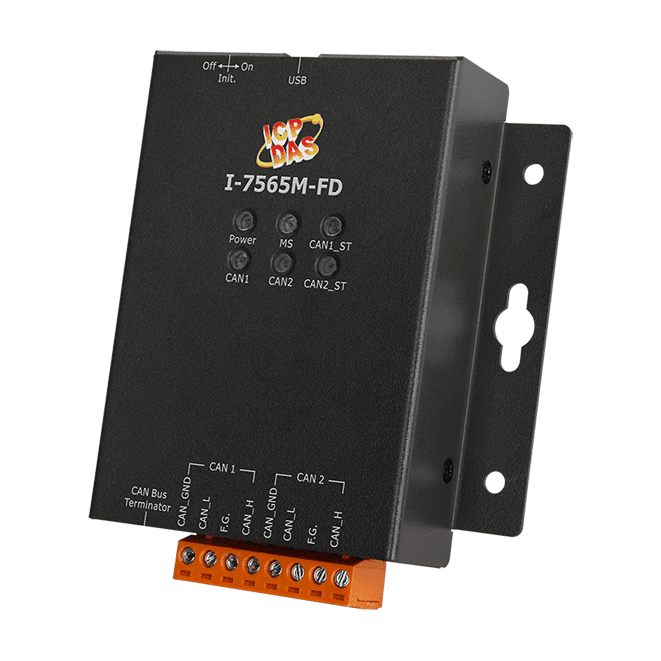

I-7565M-FD USB to 2-port CAN/CAN FD Bus Converter

£275.00

Add to quote

Key Features

  • Compatible with USB 2.0 (High Speed)
  • Compatible with the ISO 11898-2 standard
  • Compatible with CAN specification 2.0 A/B and FD
  • CAN FD support for ISO and Non-ISO (Bosch) standards switchable
  • CAN FD bit rates for data field from 100 kbps to 10000 kbps
  • Support CAN Bus message filter configuration
  • Time stamp resolution 1ms.
  • Voltage supply via USB
  • Watchdog inside
  • Built-in dip-switch to select 120 ohm terminal resister for CAN Bus
  • Support firmware update via USB
  • Provide utility tool for users module setting and CAN Bus communication testing conveniently
  • Provide API library for user program development
CE UKCA FCC RoHS WEEE

Description

The ICP DAS I-7565M-FD is a USB to CAN/CAN FD (CAN with Flexible Data-Rate) converter with two CAN channels. It allows transmitting/receiving CAN/CAN FD frames and supports CAN2.0A/2.0B and CAN FD (ISO/Bosch) specifications and different baud rates for CAN/CAN FD frame. (10 kbps to 1000 kbps for CAN arbitration phase and 100 kbps to 10000 kbps for CAN FD data phase).

When connecting I-7565M-FD to PC, PC will load the relevant device driver automatically (hot plug & play). Therefore, users can make data collection and processing of CAN Bus network easier and quicker by applying I-7565M-FD. The application fields can be CAN Bus monitoring, building automation, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, etc. The following is the application structure for the USB to CAN/CAN FD module. The PC can be the CAN host, monitor or HMI to access/control the CAN/CAN FD devices through the CAN network by the I-7565M-FD Converter. The module let users to communicate with CAN/CAN FD devices easily from PC with USB interface.

Applications


• Control System
• Building Automation
• Factory Automation
• Monitor System
• Vehicle Automation
