I-7540D Intelligent CAN Bus to Ethernet Gateway


Key Features

• 10/100 Base-TX Ethernet controller
• Message transmitted by using TCP/IP protocol and maximum 24 Ethernet client connections
• COM driver support interrupt and 1K QUEUE input & output buffer
• 2500Vrms photo-isolation protection on CAN side
• Jumper for 120Ω terminal resistor for CAN channel
• NXP 82C250 CAN Transceiver
• Support both CAN specification 2.0A and 2.0B
• Web Configuration
• Support Virtual COM technology

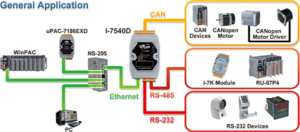

The ICP DAS I-7540D series is a CAN Bus to Ethernet converter and can be used as an Ethernet to CAN/RS-232/485 Device Server. It support socket access functions and virtual COM port technology which helps users to get the CAN, RS-232, RS-485 data via virtual COM port. The ICP DAS I-7540D also provide transparent mode, which enables CAN networks to be coupled together over the Internet/Ethernet for remote monitoring and control applications. The I-7540D is ideal for various RS-232, RS-485 and CAN applications with different communication protocols such as  RS-232 protocol, private CAN protocol, Modbus protocol, CANopen protocol and DeviceNet protocol or J1939 protocol.
