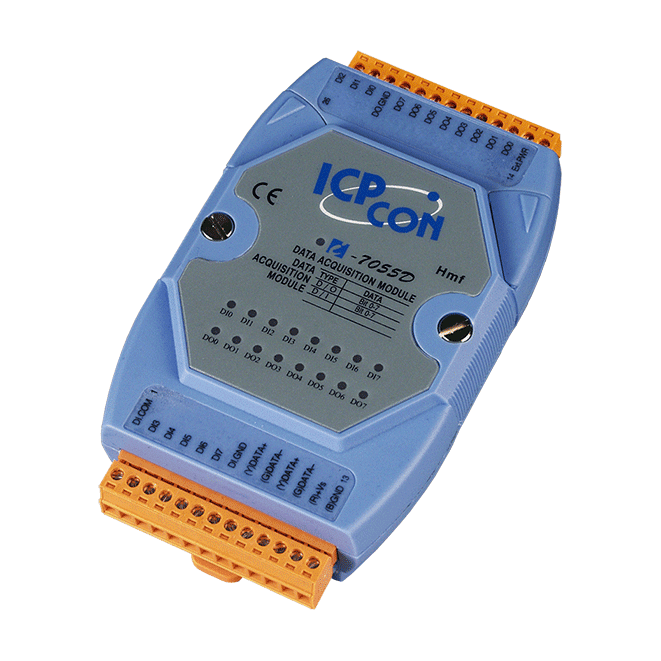

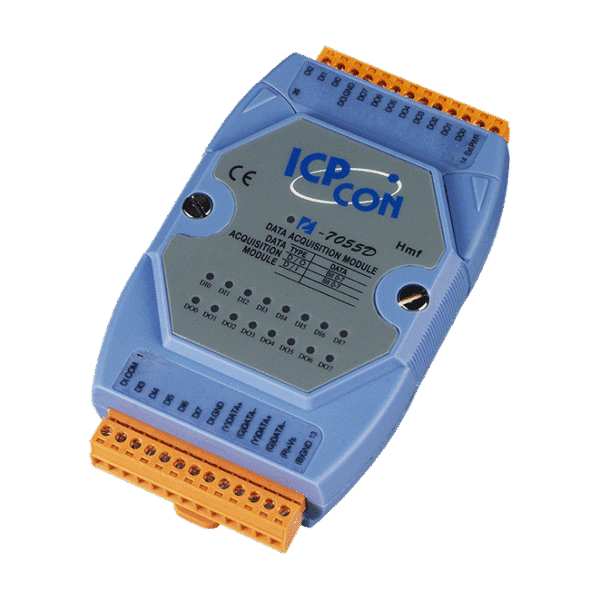

I-7055D 8-ch Isolated (Dry, Wet) DI & 8-ch Isolated (Source, PNP, 10~40 VDC) DO Module with LED Display


Key Features

• Source-type Digital Output Channels with Overload Protection
• All Digital Input Channels can be used as 16-bit Counters
• Short Circuit Protection
• 4 kV ESD Protection
• 3750 VDC Intra-module Isolation
• Configurable Power-on Value Settings
• Configurable Safe Value Settings
• Wide Operating Temperature Range: -25 ~ +75°C


The ICP DAS I-7055(D) offers 8 isolated channels for digital input and 8 isolated channels for digital output. Either sink-type or source-type digital input can be selected via wire connections. All digital input channels are also able to be used as 16-bit counters.

The I-7055(D) supports source-type output with short circuit protection. There are options to enable both power-on and safe values. The I-7055D has 16 LED indicators that can be used to monitor the status of the digital input and digital output channels. 4 kV ESD protection and 3750 VDC intra-module isolation are standard. The M-7055 has the same hardware specifications as the I-7055, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.


  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote Diagnosis
  • Testing Equipment
