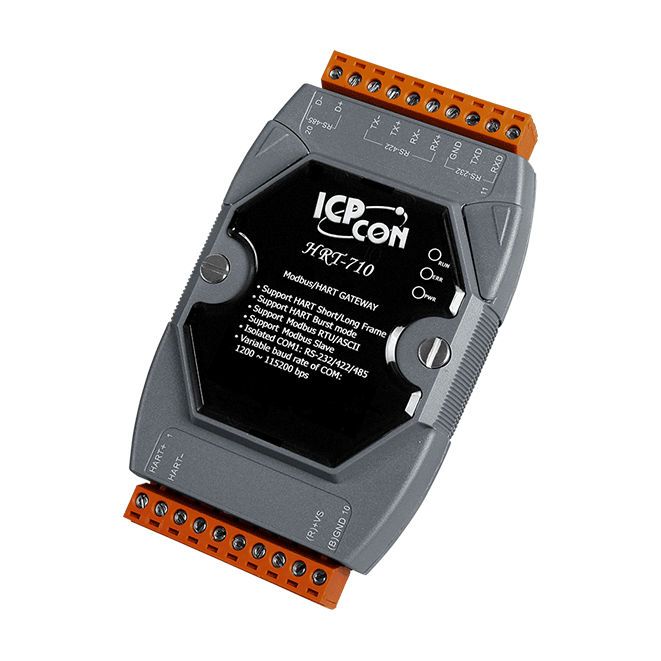

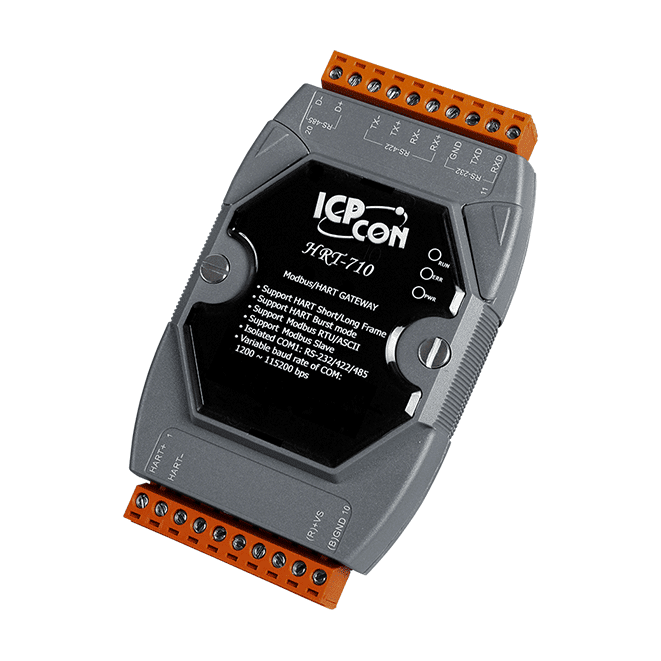

HRT-710 Modbus RTU/ASCII to HART Gateway

HRT-710 Modbus RTU/ASCII to HART Gateway

£253.82

Add to quote

Key Features

  • Support HART Short/Long frame
  • Support HART Burst mode
  • Allow two HART Masters
  • Working in point-to-point or multi-drop HART mode
  • Connecting up to 15 HART modules
  • Support Modbus RTU and ASCII format
  • Support Modbus Slave mode
  • Support firmware update via Com Port. (FW_v1.2 and HW_v1.2)
  • Support on-line replacement of HART devices. (FW_v1.5)
  • Support acquire Long Frame Address automatically (FW_v1.5)
  • Isolated COM Port : RS-232/422/485
  • Provide LED indicators
  • Built-in Watchdog
  • DIN Rail or Wall Mounting

Description

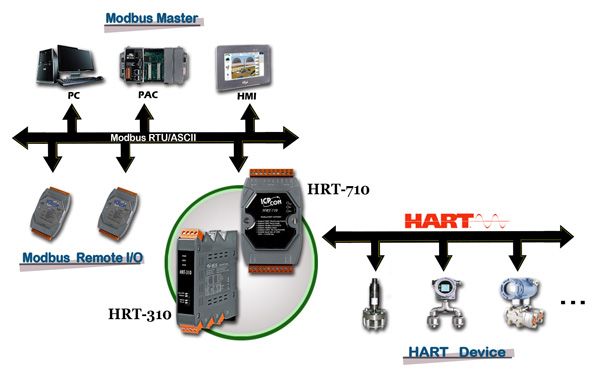

The ICP DAS HRT-710 Gateway is specially designed for the master device of HART protocol. It allows the Modbus master to access the HART devices such as transmitters, actuators and other. In addition, software utility, HG_Tool, are available for module configuration and HART device diagnosis.
