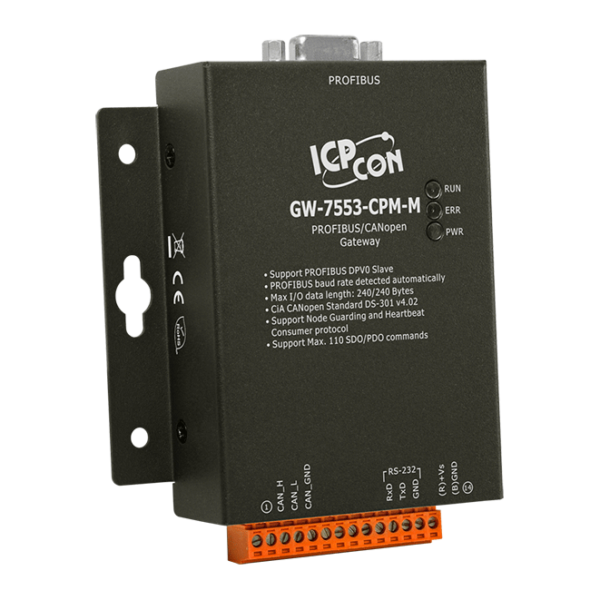

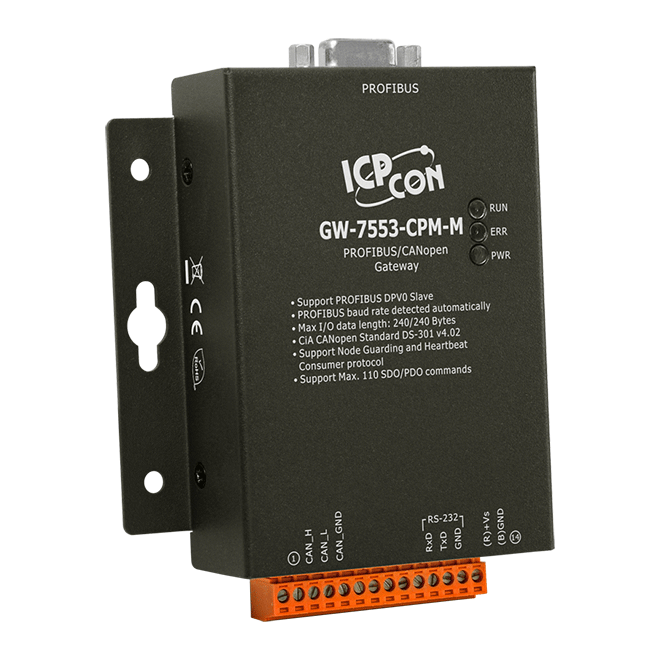

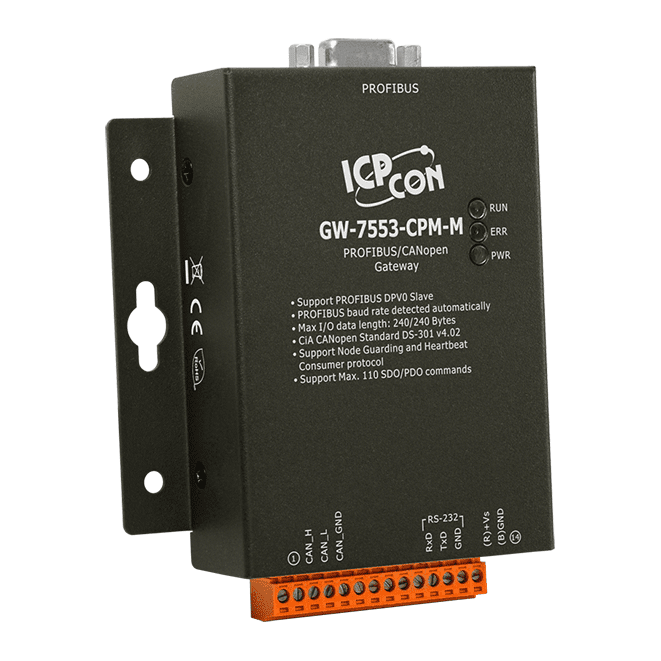

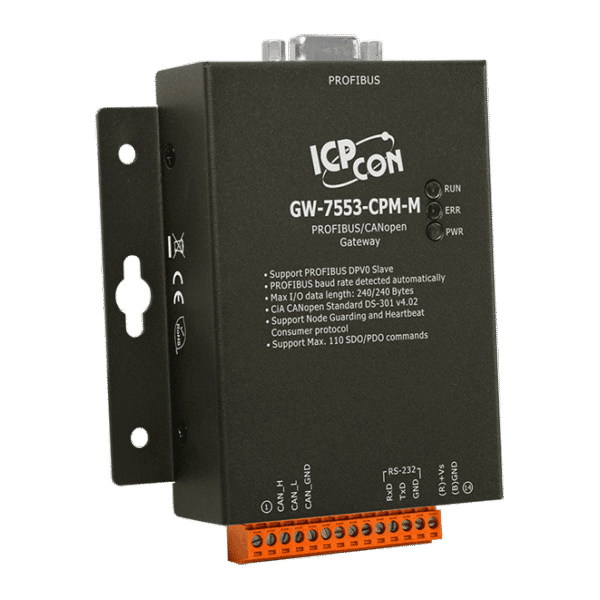

GW-7553-CPM-M PROFIBUS to CANopen Gateway (Metal Case)

£399.00

Add to quote

Key Features

  • Protocol & Hierarchy : DP-V0 Slave
  • Transmission Rate Setting : detected automatically
  • Max Input Data Length : 240 Bytes
  • Max Output Data Length : 240 Bytes
  • PROFIBUS Address Setting : 0~126 set by DIP switch
  • Supports CANopen Standard : CiA CANopen Standard DS-301 v4.02
  • Supports CANopen Consumer protocol : Node Guarding and Heartbeat Consumer protocol
  • Number of CANopen Commands : Support 110 CANopen SDO/PDO commands
  • Network Isolation Protection : 2500 Vrms High Speed iCoupler
  • DC Isolation Protection : 3000VDC on PROFIBUS side
CE UKCA RoHS WEEE

Description

The ICP DAS GW-7553-CPM Gateway is specially designed for the slave device of PROFIBUS DP protocol. It allows the PROFIBUS master to access the CANopen slave devices. We also provide the utility software for users to configure the GW-7553-CPM. By using this module, users can put their CANopen devices into PROFIBUS network very easily.

Applications

  • Industrial Automation
  • Factory Automation
  • Process Automation
