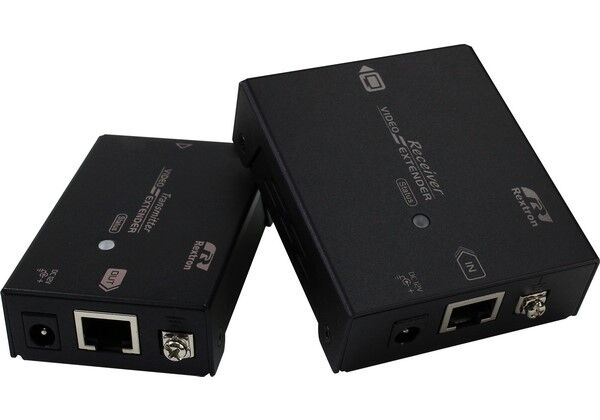

EVBM-M107 4K HDMI Extender Over CAT.X, 70M (PoC)


Key Features

  • Allows Reliable Remote Access of An HDMI Video Source via a CAT.x Cable Up to 70 Meters ( 230 feet )
  • HDMI Video Supports Most Popular Resolutions Up to 4K@30Hz ( 4:4:4 )
  • HDR10 Support for Best Visual Experience
  • HDCP 1.4 Compliance Ensures Uninterrupted HD and UHD Video Playback
  • Support HDMI CEC
  • Plug-and-Play without Software or Driver
  • HDBaseT Uncompressed Video Extension Ensures Crystal Clear Image and Low Latency
  • PoC ( Power over Cable ) Allows The Power Transmission from Either Tx-to-Rx or Rx-to-Tx


The Rextron EVBM-M107, HDMI Extender, provides HDMI extension capability through a single Cat. 5e or Cat. 6 cable up to 70 meters at 1080p (or 35 meters at the resolution of 4K) in a point-to-point configuration, and supports HDCP and Phantom Power. The built-in Auto EDID Configuration ensures the optimized video output.

HDMI Extender, EVBM-M107, Power over Cable (PoC) enables the transfer of DC power over a single Ethernet cable to a distance of up to 70/100 meters. HDMI extender requires a single power supply at either end of the extender units, which is especially useful in the condition where there’s no available power socket at certain side.

Devices that support HDCP ( High-Bandwidth Digital Content Production ) are more likely to be compatible with 4K UHD contents. Most of the latest Rextron HDMI Extender and Video Extender supports HDCP and is particularly backward-compatible with previous version. That means you can connect older sources to a new 4K TV under HD streaming with no HDCP converter in between. Rextron video extender supports HDCP key to ensure uninterrupted video playback at all time.
