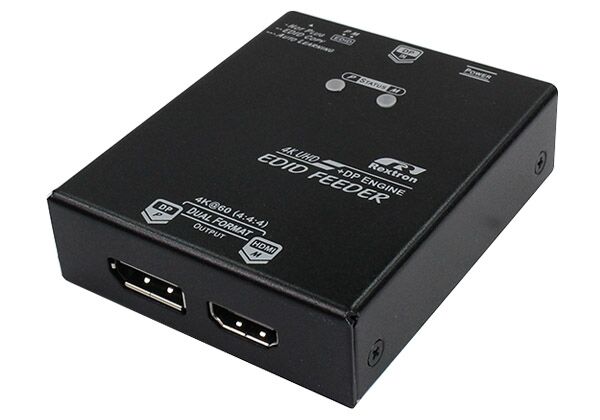

VDDC-462DPM True 4K DisplayPort EDID Feeder With 2 Ports Splitter, DisplatPort & HDMI


Key Features

  • 4K@60Hz UHD DisplayPort EDID Feeder Design with HDCP Engine Ensures The Smooth and Optimum Display Effect
  • Allow to Restore 2 Customized EDID Information or Copy EDID from The Connecting Display
  • Avoid Computer from Deactivating DisplayPort Ports
  • Economical, Durable and Dependable
  • Support over 100 Popular Resolution
  • EDID Ghost (DDC Ghost)
  • Allow Continuous EDID Feed to Source Even when Displays are Disconnected
  • Emulator Maximum Supports up to 4K@60Hz UHD, 3840 x 2160 Resolution
  • Built in HDCP Engine
  • Additional Splitter Function
  • Incorporate EDID and HDCP Handling Procedures for Continuous Video Output
  • Auto Confi guring EDID from The Connecting Display, Easy and Ready to Go
  • EDID/HDCP Engine Solves DisplyPort Problem ( Problem : Desktop Windows Relocation After Switching )


The Rextron VDDC-462DPM, DisplayPort EDID Emulator, distributes/ converts DisplayPort video out to 1 DP and 1 HDMI Monitors. The build-in HDCP key acts as a coordinator between the source and the display device to ensure continuous digital video streaming.

This EDID Auto Learning and EDID Copy functions allow the DisplayPort EDID Emulator either to read the necessary EDID information from the splitter unit itself or to copy EDID from the EDID compliant monitors (DP or HDMI), which ensures the accurate output display. DisplayPort EDID Emulator, VDDC-462DPM, aggregates EDID Feeds from either DisplayPort or HDMI compliant monitor and supports both Permanent (EDID Copy) and Temporary (EDID Auto Learning) EDID configurations.

NOTE: EDID Auto Learning records the EDID information but the EDID data will be erased after hot plug or power off
