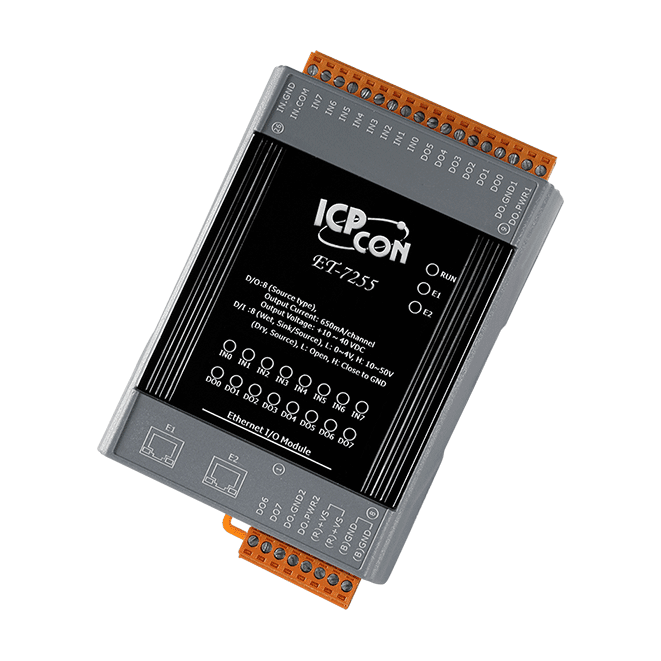

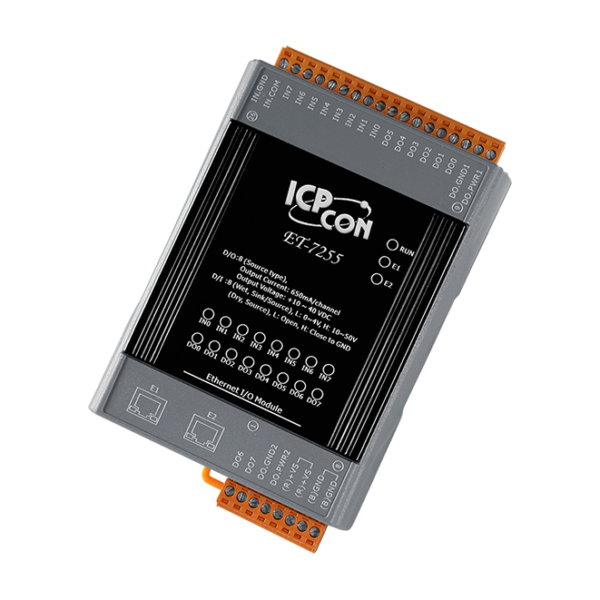

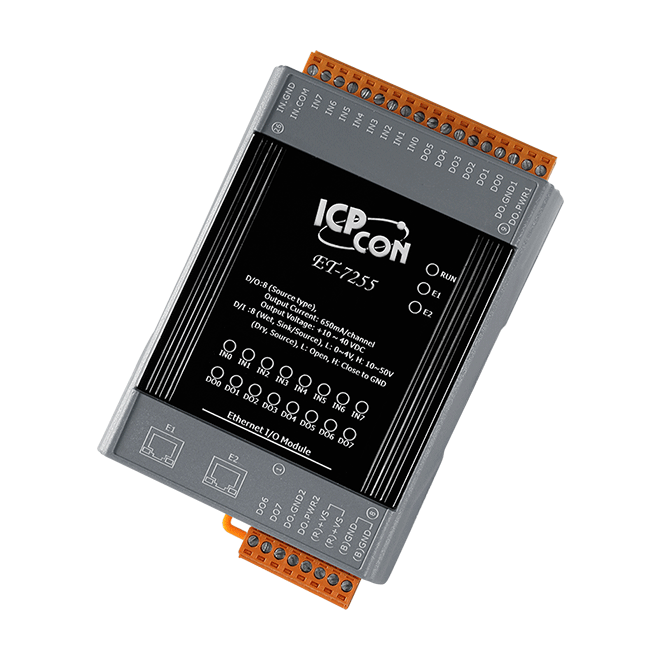

ET-7255 Ethernet I/O Module with 2-port Ethernet Switch, 8-ch DI & 8-ch DO

£248.28

Add to quote

Key Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP & Modbus UDP Protocols
  • Communication Security
  • 2-port Ethernet Switch for Daisy-Chain Topology
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C
  • Built-in I/O
    • DI/Counter: 8 Channels
    • DO: 8 Channels

Description

The ICP DAS ET-7255 provides 8 Dry/wet contact digital input channels and 8 source-type digital output channels. It features optical isolation for 2500 VDC of transient over-voltage protection but doesn’t provide channel-to-channel isolation. Each input channel can be used as a 32-bit counter and each output channel can drive 650 mA load. The power-on value and safe value of digital output channel are programmable. It can safely be used in applications where hazardous voltages are present.

ET-7255_PET-7255
