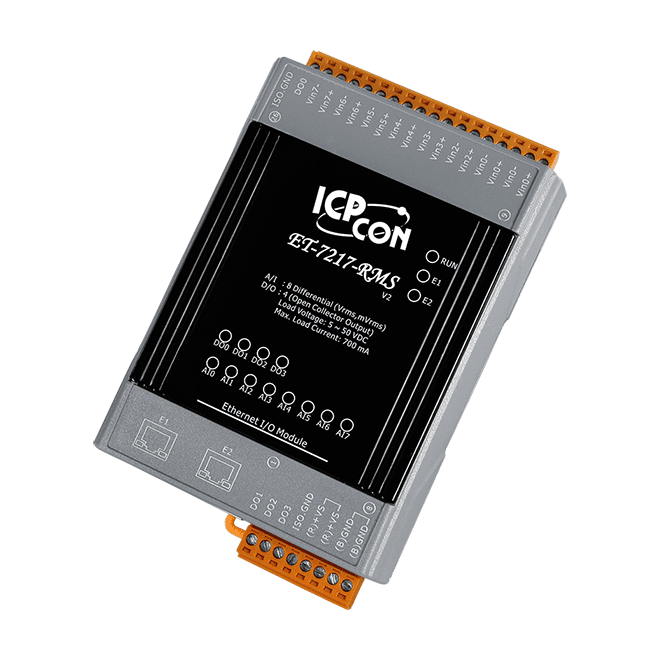

ET-7217RMS Ethernet I/O Module with 2-port Ethernet Switch, 8-ch RMS Input & 4-ch DO
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- Dual Watchdog
- Wide Operating Temperature Range: -25 ~ +75°C
- I/O Pair Connection
- Built-in I/O
- AI: 8 Channel True RMS Input
- DO: 4 Channel
The ICP DAS ET-7217RMS module has 8-channel differential AC input and 4-channel digital outputs which is used to convert the AC input signals to their True RMS DC values. The RMS input range can be from +150 mVrms to +10 Vrms, and each channel can be configured individually.
The ET-7217RMS is a complete, high-accuracy, RMS-to-DC converter that computes the True RMS DC value of any complex waveform. The ICP DAS ET-7217RMS module also features 4 kV ESD protection, 2500 VDC intra-module isolation, and ±35 Vrms/±28 VDC overvoltage protection.
This Ethernet I/O module can be remotely controlled using the Modbus TCP/UDP protocol via an Ethernet network which makes it ideal for integration with HMI, SCADA, PLC and other industrial control software systems.
