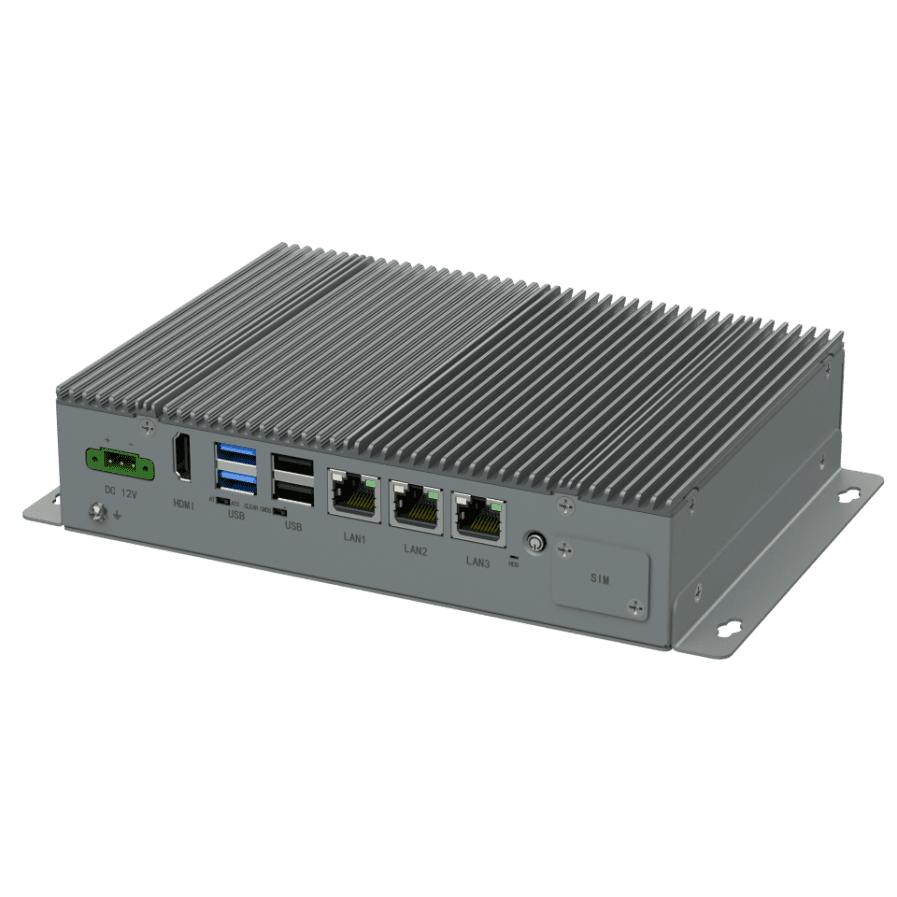

ECC-U5000/S001-WP Industrial fanless embedded PC for Energy storage applications with Intel® Elkhart lake SoC CPU, 3*LAN, 4*USB, 8*COM, 8*DI+6*DO, 2*CAN ports & 9~36Vdc (OFX-75) power input
Key Features
- Intel® Elkhart lake Soc CPU
- Intel® CPU SoC MCP, Fanless cooling design
- 1*DDR4 3200MHz SODIMM, up to 32GB
- 1*HDMI, 1*mSATA
- 2*MiniPCIe (1*MiniPCIe supports 4G, and the other with PCIeX1 and USB2.0 signals)
- 8*COM (2*RS232/485+6*RS485) Tape isolation, 3*LAN, 2*USB3.2+2*USB2.0, 8*DI+6*DO indicates isolation, 2*CAN indicates isolation
- 9 -36V power input
Description
The JHCTECH ECC-U5000 is an EMS Energy Storage Controller that is specifically designed for energy storage applications. The ECC-U5000 has a powerful performance and compact size design, which makes it an ideal solution for installation conditions of energy storage cabinets.
This fanless embedded computer is equipped with Intel® Elkhart lake Soc CPU and support up to 32GB memory. The ECC-U5000 has a wide range of I/O interfaces, including isolated COM, USB, GbE LAN, GPIO, DIO, as well as Mini PCIe and PCI/PCIe expansion slots for WiFi or other advanced expansions. This compact computer support CAN Bus communication protocol and comes with two CAN ports that can be used to connect with Battery Management Unit (BMU) of the Battery Management System (BMS).
The ECC-U5000 is equipped with IO interfaces with multi-network and multi-string configurations which meets the data acquisition needs of energy storage EMS systems. This compact fanless embedded computer has a modular wide voltage power supply input OFX-075 (9~36 Vdc) with over-voltage, over-current, reverse polarity, and short circuit protection suitable for power supply input requirement for energy storage EMS systems. The ECC-U5000 also support 12 Vdc direct current power supply input, providing a flexible power solution selection.
The EEC-U5000 is specifically designed and proven for applications such as energy storage power stations, commercial & industrial energy storage systems and residential energy storge solutions.
