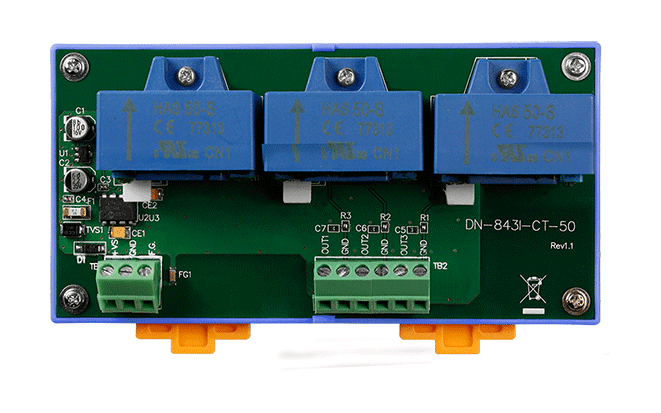

DN-843I-CT-50 3-ch 50A Current Transformer

£209.00

Features

  • AC/DC Source Input
  • High Voltage Input Measurement
  • Linear Attenuation Ratio
  • High Input Impedance
  • Easily wire connection
CE UKCA FCC RoHS WEEE

Description

The ICP DAS DN-843I-CT series has a maximum input range from ±1 A to +/- 50 A and can be attenuated to from ±1.6 V to ±10 V.
The “I” version provide 3000 VDC intra-modules isolation and 3000 VDC channel to channel isolation to avoid the noise interference from inputs to outputs or channel to channel. It can be used with the analog input modules such as I-7017 and I-87017 etc. to measure the high current.

DN-843I-CT-(1)(10)(20)(50)_en
