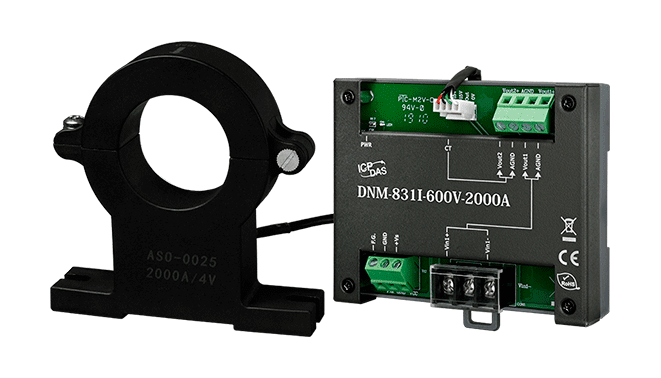

DNM-831I-600V-2000A 1-ch Voltage Attenuator (600V) & 1-ch Current Transformer (2000A) (Metal)

Name: DNM-831I-600V-2000A 1-ch Voltage Attenuator (600V) & 1-ch Current Transformer (2000A) (Metal)
Brand: simple
Availability: InStock

£249.00

Add to quote

Features

High Voltage Input and High Current Input Measurement
Three Way Isolation
Linear Attenuation Ratio
High Input Impedance
Easily wire connection

Description
Datasheets

Description

The ICP DAS DNM-831I-600V-1000A is 1-channel voltage attenuator and 1-channel current transformer. The maximum voltage input range is from ±600V can be attenuated to ±10 V and the maximum current input range is from ±2000A can be attenuated to ±10 V.

It provides 3000 VDC intra-modules isolation and 3000 VDC channel to channel isolation to avoid the noise interference from inputs to outputs or channel to channel. It can be used with the analog input modules such as I-7017, I-87017, M-7017RMS and I-87017W-RMS etc. to measure the high current.

DN-831I-100V_DNM-831I-100V_DNM-831I-600V_en
