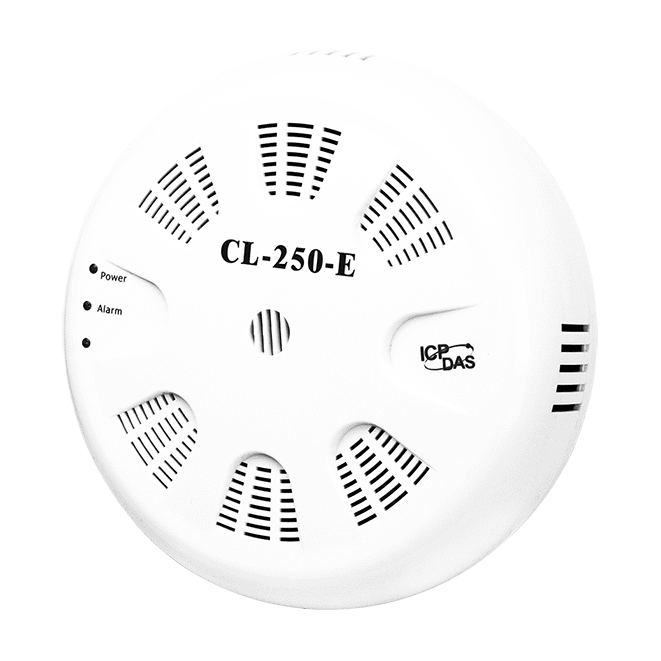

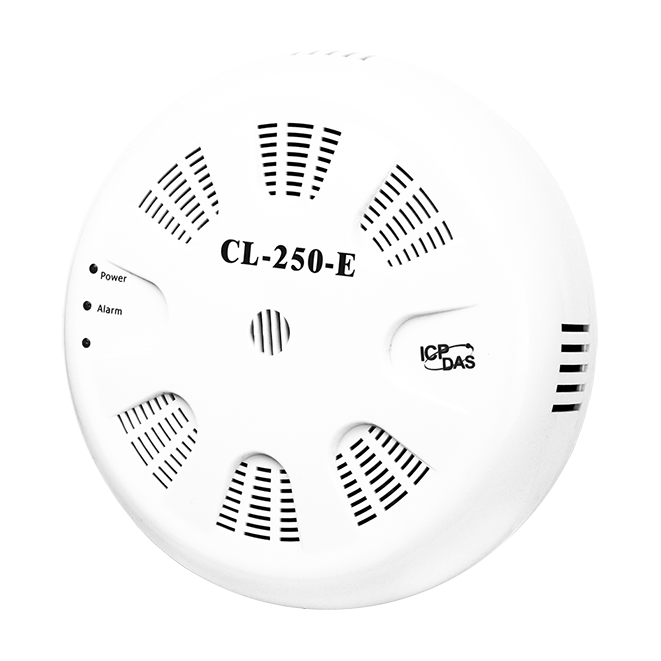

CL-250-E O2/Temperature/Humidity/Dew Point Data Logger Module

The ICP DAS CL-25X-E series of O2 and gas measurement module that measures oxygen gas (O2) in air.  In addition, various fume concentrations related to human health can also be measured. For example: CO / CO2 / temperature / humidity and dew point information, including the date and time stamps, and are able to store up to 450,000 downloadable records.

Real-time data can be accessed from the CL-250-E data logger from anywhere and at any time using the free Windows software, the Iso App, or the Android App, as long as they are connected to the same local network as the data logger. Support is provided for common industrial protocols such as DCON, Modbus RTU, and Modbus TCP, as well as the emerging machine to-machine (M2M)/)IoT (Internet of Things) connectivity protocol – MQTT.

The CL-250-E data logger can be connected via widely used communication interfaces including RS-485, Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, ensuring trouble-free maintenance in distributed control systems
