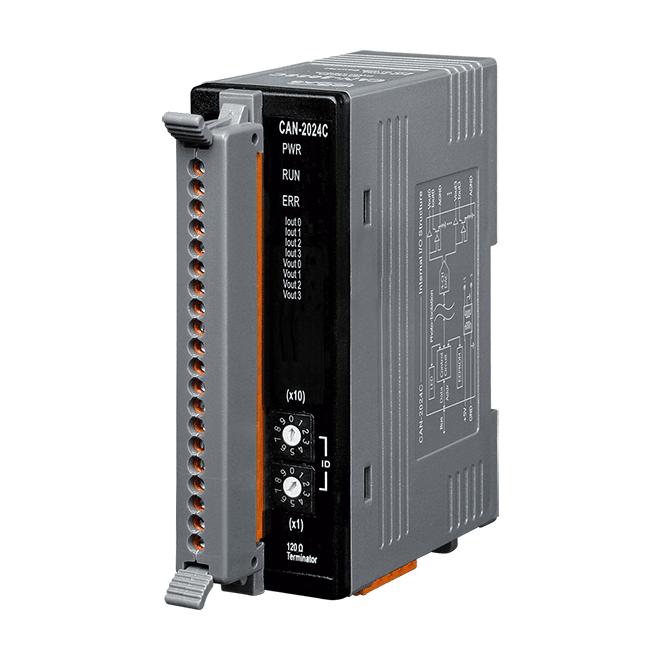

CAN-2024C CANopen I/O Module with 4-channel 14-bit Analog Output


Key Features

  • NMT Slave
  • Read-Back Accuracy ±1% of FSR
  • Provide default EDS file
  • ESD Protection 4 KV Contact for each channel
  • Support Power Supply +10 ~ +30 VDC
  • Support CiA DS-301 v4.02, DSP-401 v2.1
  • Support PDO Mapping



CANopen is one kind of the network protocols based on the CAN bus and mainly used for embedded network of machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipment control, remote data acquisition, environmental monitoring, and packaging machines control.

The ICP DAS CAN-2024C module follows the CiA DS-301 version 4.02 and DSP-401 version 2.1. It is easy to access the analogue I/O status and set the configuration by using the standard CANopen protocol.

The CAN-2024C has passed the validation of the CiA CANopen Conformance Test tool. Therefore, the provided EDS file is standard for any other standard CANopen masters. Owing to the 4-channel analog output and the CANopen masters of ICP DAS, you can quickly build a CANopen network to approach your requirements.
